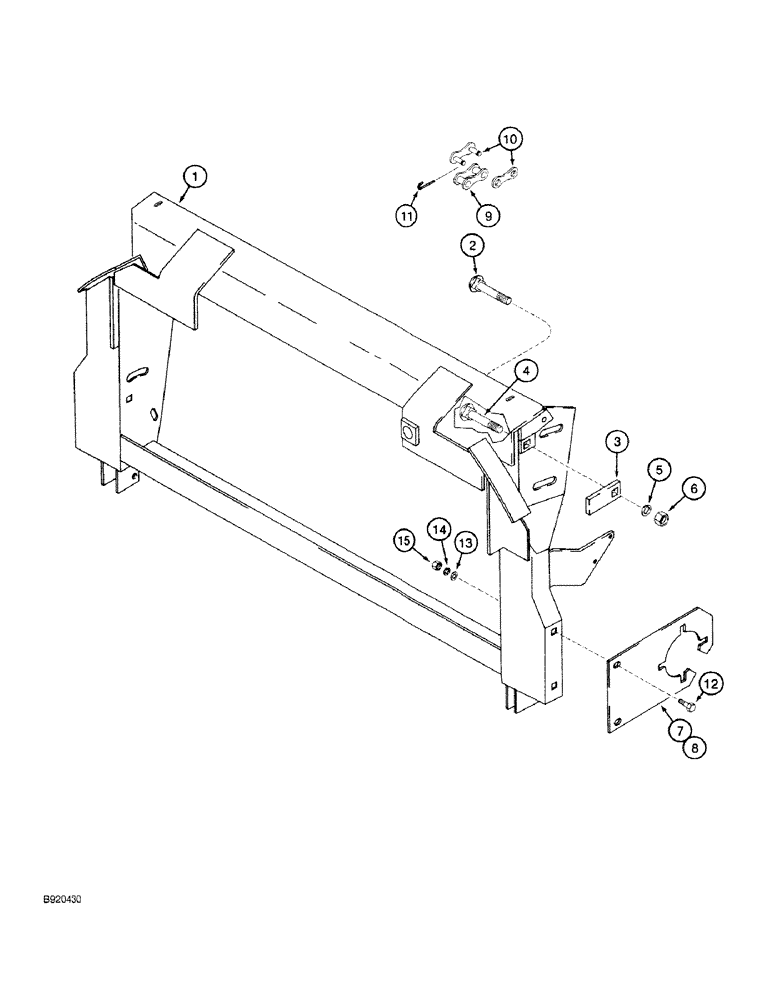

Запчасти Case IH 1680 (09-02) - FEEDER PIVOT SUPPORT, FOR 1600 COMBINES (09) - CHASSIS

1

100465A1

FRAME

SUPPORT

1шт.

2

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

BOLT, 5/8 x 2 in

4шт.

3

100288A1

BAR

STOP

2шт.

4

433-1024

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 1/2", Gr 5

BOLT, 5/8 x 1-1/2 in

2шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

425-1010

NUT,5/8"-11, G5

2шт.

7

100290A1

SUPPORT

right

1шт.

8

100291A1

SUPPORT

left

1шт.

9

100487A1

LINK

2шт.

10

1324294C1

LINK,40.893mm Pitch

LINK, connecting

2шт.

11

1329837C2

PIN,2.63mm OD

4шт.

12

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

13

495-21056

WASHER,1/2"

4шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.
