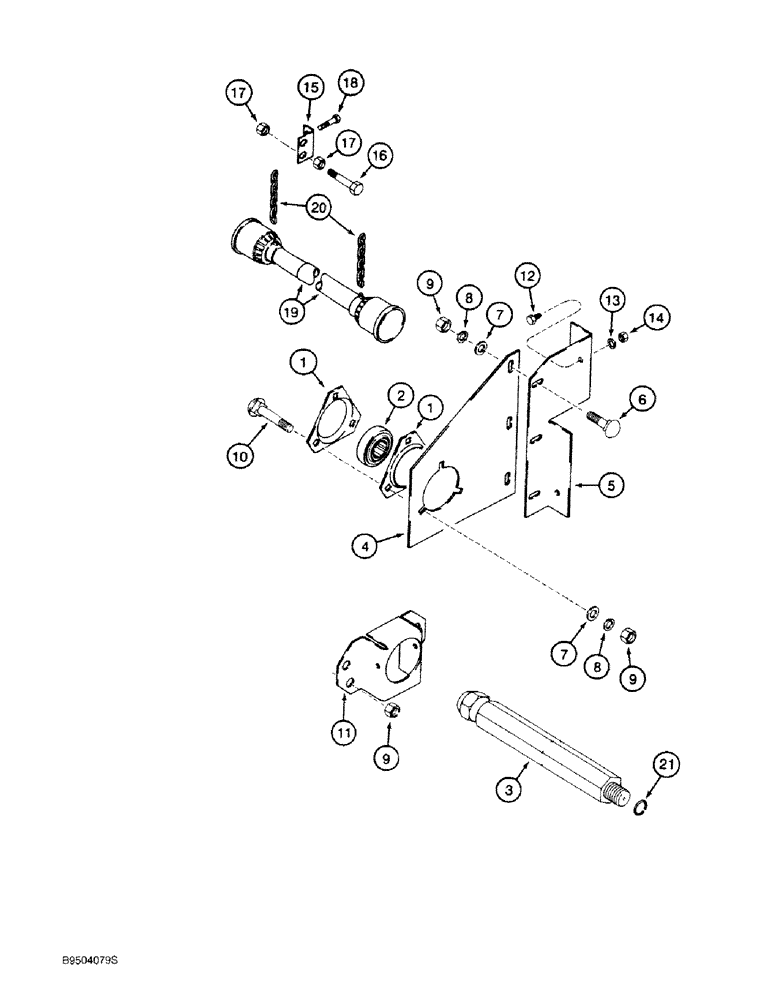

Запчасти Case IH 1640 (09-05) - 1064, 1084 HEADER DRIVE SHAFT (09) - CHASSIS

1

180955C1

FLANGED BEARING,0.375"

FLANGE

2шт.

2

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING

2шт.

3

1994894C1

SHAFT

JACKSHAFT, 9-7/8 in

2шт.

4

100949A1

SUPPORT

BRACKET

2шт.

If looking for the angle iron that fits on ref #4 & #5 the part number is 280520A1 LH and 280519A1 RH. This measures about 22"

1шт.

5

100950A1

SUPPORT

BRACKET

2шт.

If looking for the angle iron that fits on ref #4 & #5 the part number is 280520A1 LH and 280519A1 RH. This measures about 22"

1шт.

6

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT, 3/8 x 1 in

8шт.

7

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 in) 3/8"

12шт.

8

492-11038

LOCK WASHER,3/8"

12шт.

9

231-4216

LOCK NUT,3/8"-16, GB

LOCKNUT, 3/8 in

20шт.

10

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

BOLT, 3/8 x 1-1/2 in

8шт.

11

100947A1

SUPPORT

4шт.

12

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 in

4шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

14

425-105

NUT,5/16"-18, G5

4шт.

15

108725A1

SUPPORT

2шт.

16

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

2шт.

17

231-41112

LOCK NUT,3/4"-10, GB

4шт.

18

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

19

100951A1

SHAFT

ASSY., with 20, see Figure 9-9

2шт.

20

1326632C1

CHAIN

4шт.

21

575186R1

SNAP RING

RING

2шт.
