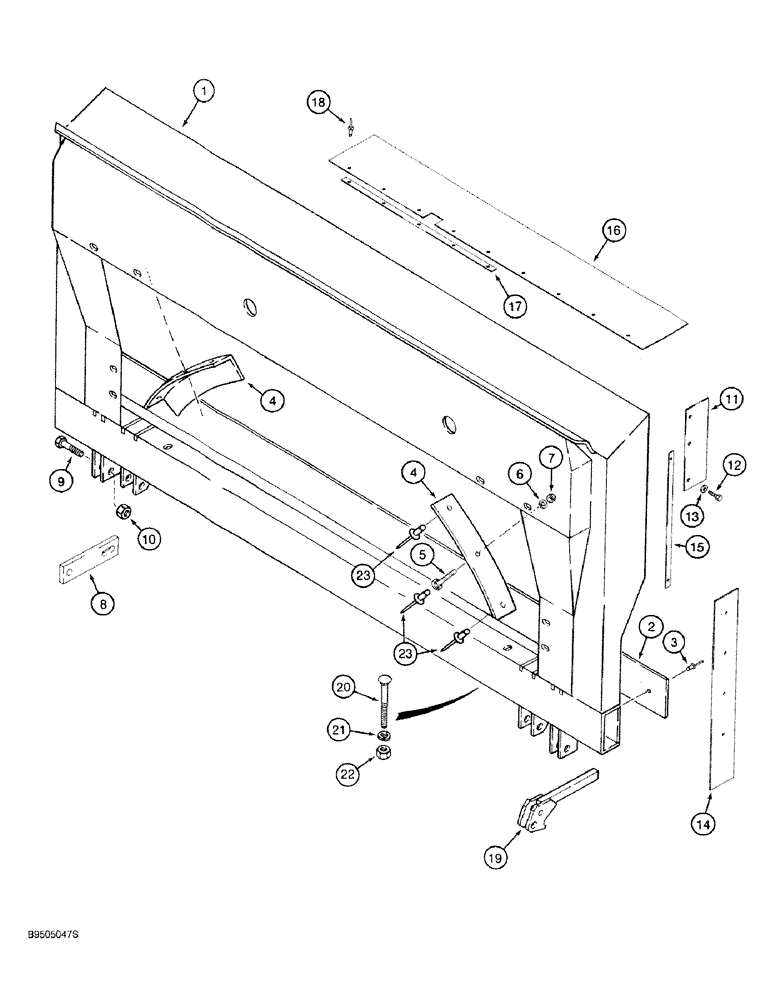

Запчасти Case IH 1640 (09-03) - HEADER PIVOT SUPPORT, FOR 1600 COMBINES (09) - CHASSIS

1

100464A1

SUPPORT

1шт.

2

100274A1

WEAR PLATE

PLATE, lower

1шт.

3

151-559

RIVET,Pop, 4.75mm OD x 12.7mm L

3/16 x 1/2 in

7шт.

4

100273A1

SUPPORT

SIDE, upper

2шт.

5

100302A1

BOLT

BOLT, 1/4 x 1-3/8 in, if so equipped

2шт.

6

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , If so equipped 1/4"

2шт.

7

425-104

NUT,1/4"-20, Cl 5

1/4 in, if so equipped

2шт.

8

100287A1

STOP

2шт.

9

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

10

231-4218

LOCK NUT,1/2"-13, GB

LOCKNUT, 1/2 in

4шт.

11

108739A1

RUBBER SEAL,3.17mm Thk

2шт.

12

281-5488

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 1/2"

SCREW, 5/16-18 x 1/2 in

6шт.

13

495-21038

WASHER,5/16"

(3/8 x 7/8 x 5/64") 5/16"

6шт.

14

108740A1

RUBBER SEAL

2шт.

15

108645A1

STRAP

STRIP

4шт.

16

108489A1

GUARD

SHIELD

2шт.

17

108646A1

STRAP

STRIP

2шт.

18

151-559

RIVET,Pop, 4.75mm OD x 12.7mm L

3/16 x 1/4 in

26шт.

19

100295A1

HANDLE

2шт.

20

411-572

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 4 1/2", Gr 2

BOLT, 5/16 x 4-1/2 in

2шт.

21

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

22

425-105

NUT,5/16"-18, G5

2шт.

23

151-559

RIVET,Pop, 4.75mm OD x 12.7mm L

3/16 x 1/2 in, if so equipped

6шт.
