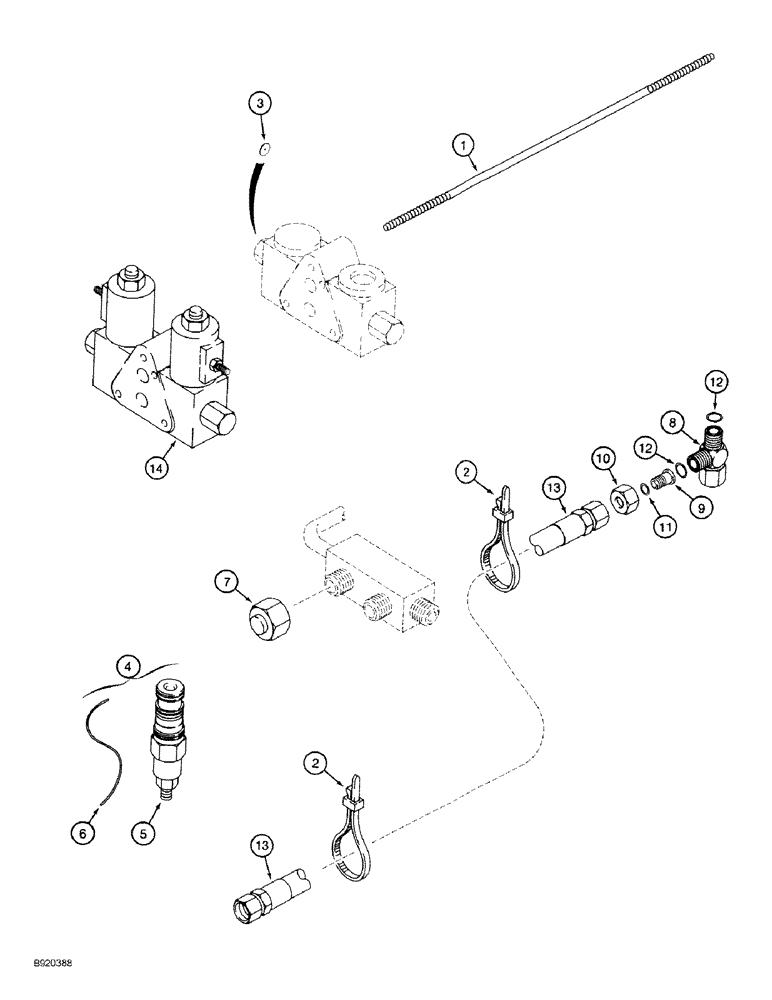

Запчасти Case IH 1640 (08-03) - 106255A1 - HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

106255A1

STUD

ROD, 1/4 x 16 in, used with 100280A1, see page 8-8

3шт.

1

106442A1

STEM

ROD, used with 121013A1, see page 8-10

3шт.

2

702093C1

CABLE TIE

STRAP

1шт.

3

105945A1

PORT

DISC

1шт.

4

1543181C2

PACKAGE, REPAIR

KIT, includes 5, 6

1шт.

5

CARTRIDGE

1шт.

6

WIRE

1шт.

7

201-905

CAP,13/16"-16 ORFS

includes 238-6014

1шт.

8

201-417

TEE,1-3/16" - 12 JIC x 1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS

includes 12

1шт.

9

201-143

REDUCER,11/16"-16 Male x 1 3/16"-16 Fem, ORFS

ADAPTOR, includes 238-6014

1шт.

10

203-904

TUBE NUT,1 3/16"-12 ORFS

NUT, 1-3/16 in

1шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

12

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

12

105941A1

HOSE

ASSY., 3430 mm

1шт.

14

SECTION, see Figure 8-4

1шт.

14a

SECTION, see Figure 8-5

1шт.
