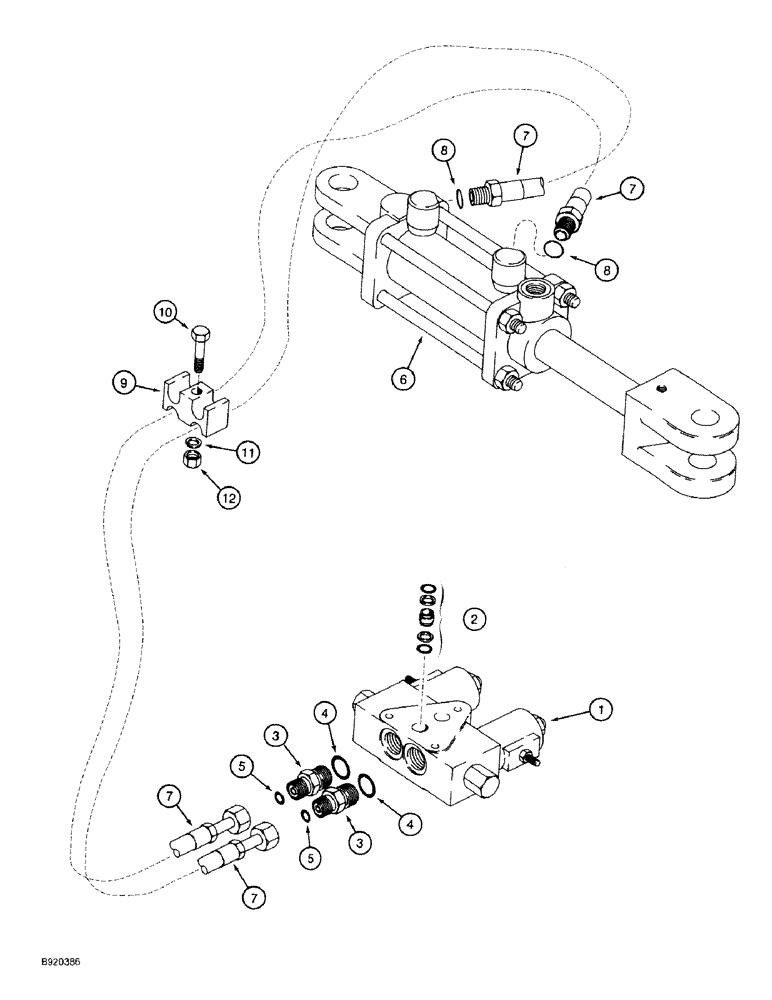

Запчасти Case IH 1640 (08-01) - HYDRAULIC CIRCUIT, FOR 1600 COMBINES (08) - HYDRAULICS

1

100280A1

VALVE

See Figure 8-4

1шт.

1

121013A1

VALVE

See Figure 8-5

1шт.

2

1301630C2

TUBE,.344" ID, .5" OD, 15" Length

ASSY.

2шт.

3

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

CONNECTOR, Inc. 4, 5

2шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

5

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

6

100267A1

CYLINDER

ASSY, See Figure 8-6

1шт.

87424022R

REMAN-HYD CYLINDER

1640, 1660, AND 1680, Reman For New P/N: 100267A1

1шт.

87424022C

CORE-HYD CYLINDER

Return Number

1шт.

7

100268A1

FLEXIBLE HOSE,6.35mm ID x 3510mm L

HOSE

2шт.

9

1330242C1

CLAMP

MOUNTING CLIP

2шт.

10

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

11

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

425-105

NUT,5/16"-18, G5

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.
