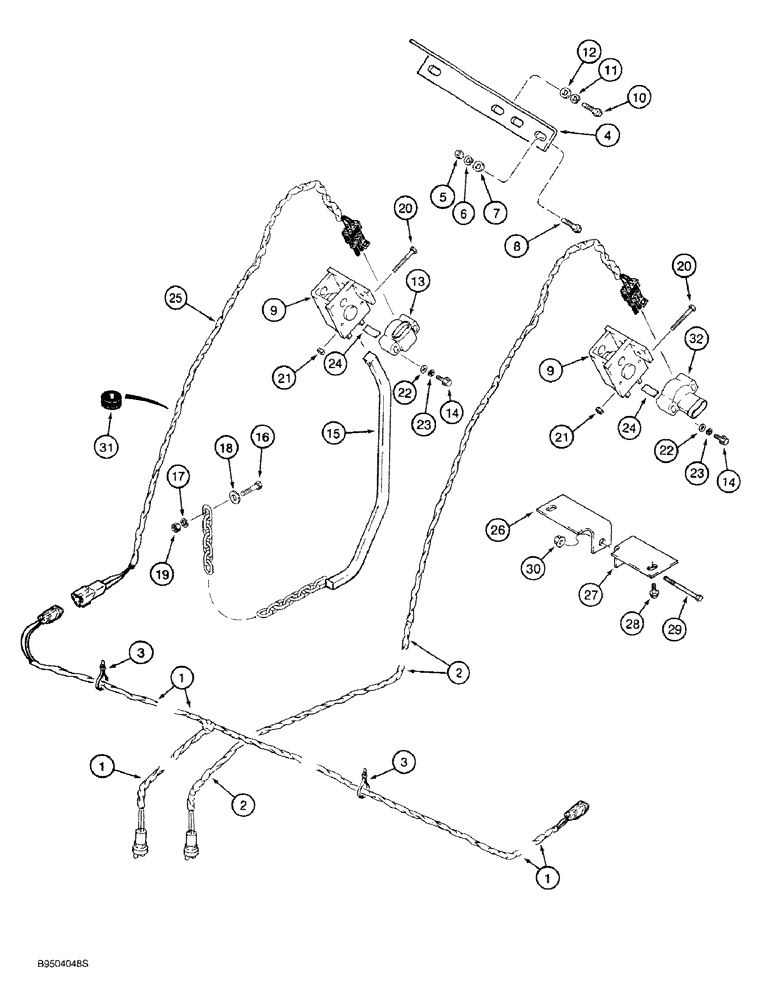

Запчасти Case IH 1640 (04-05) - HARNESS AND SENSORS, FOR 2100 COMBINES, 1995 AND AFTER (04) - ELECTRICAL SYSTEMS

1

100278A1

HARNESS

1шт.

2

187113A1

HARNESS

Header Height Control

1шт.

3

702093C1

CABLE TIE

STRAP

1шт.

4

100477A1

SUPPORT

3шт.

5

425-105

NUT,5/16"-18, G5

6шт.

If Equipped

1шт.

6

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

If Equipped

1шт.

7

495-21038

WASHER,5/16"

(3/8 x 7/8 x 5/64") 5/16"

6шт.

If Equipped

1шт.

8

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 in

6шт.

If Equipped

1шт.

9

126770A2

SUPPORT

3шт.

10

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 in

6шт.

If Equipped

1шт.

11

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

If Equipped

1шт.

12

495-21038

WASHER,5/16"

(3/8 x 7/8 x 5/64") 5/16"

6шт.

If Equipped

1шт.

13

126771A1

POTENTIOMETER,4000 Ohm

2шт.

14

463-31020

SCREW,Hex Wash Hd, #10-24 x 1 1/4"

No. 10 x 1-1/4 in

6шт.

15

126772A2

POINTER

3шт.

16

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5/16 x 1 in

3шт.

17

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

18

495-21038

WASHER,5/16"

(3/8 x 7/8 x 5/64") 5/16"

3шт.

19

425-105

NUT,5/16"-18, G5

3шт.

20

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

3шт.

21

231-4215

LOCK NUT,5/16"-18, GB

NUT, 5/16 in

3шт.

22

495-11022

WASHER,5.56mm ID x 11.13mm OD x 1.25mm Thk

6шт.

23

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

6шт.

24

189728A1

LEVER

3шт.

25

126768A1

HARNESS

3шт.

26

196539A1

SUPPORT

Left Hand

3шт.

Europe Only 1030

1шт.

27

196541A1

SUPPORT

Right Hand

3шт.

Europe Only 1030

1шт.

28

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 in

6шт.

Europe Only 1030

1шт.

29

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

5/16 x 2-1/4 in

3шт.

Europe Only 1030

1шт.

30

231-5345

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 in

3шт.

Europe Only 1030

1шт.

31

248-2399

GROMMET,3/8" ID x 1" Groove Dia, Str Cut

6шт.

32

187114A1

POTENTIOMETER,1000 Ohm

1шт.
