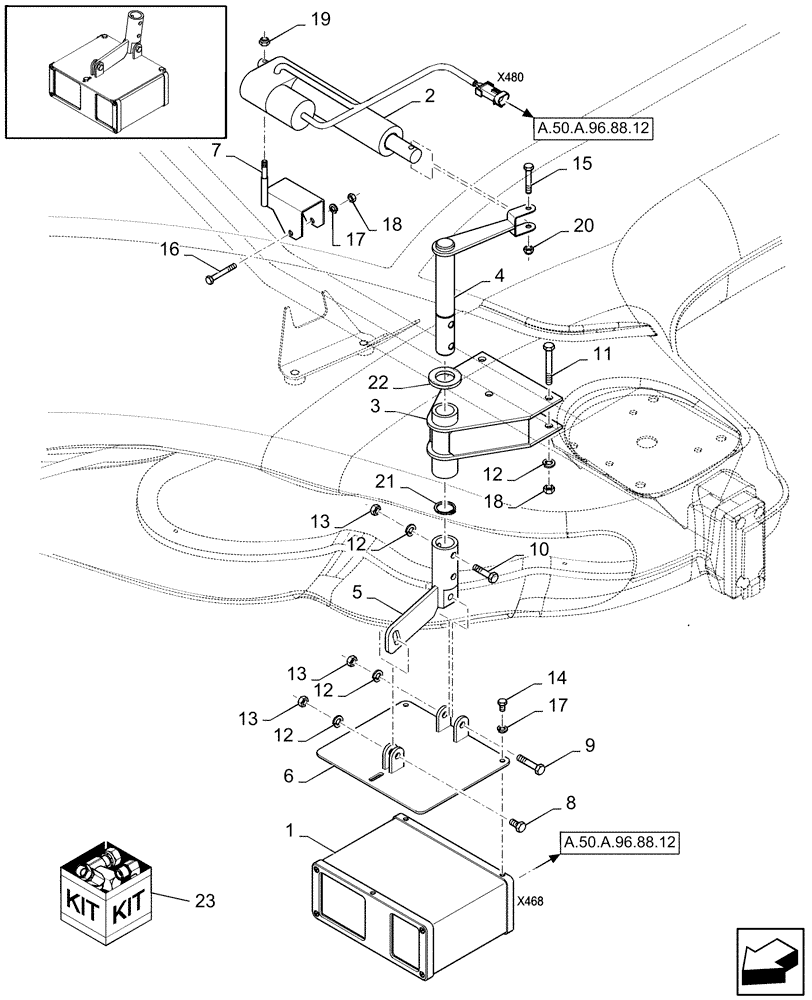

Запчасти Case IH AFX8010 (A.50.A.96.88[11]) - SMART STEER AUTO-GUIDANCE KIT - EDGE DETECTION SENSOR A - Distribution Systems

1

87540656

MODULE

Module

1шт.

2

87347281

ACTUATOR

1шт.

2

84335407R

REMAN-ELECTRIC MOTOR

1шт.

2

84335407C

CORE-ELECTRIC MOTOR

Return Number

1шт.

3

87378786

BRACKET

Support

1шт.

4

87378799

PIVOT

Shaft

1шт.

5

87378788

BRACKET

Support

1шт.

6

87378791

BRACKET

Support

1шт.

7

87378797

BRACKET

1шт.

8

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

9

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

1шт.

10

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

11

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

3шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

7шт.

13

89706690

NUT,M8, Cl 8

5шт.

14

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

3шт.

15

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

16

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

1шт.

17

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

18

9706755

NUT,M6, Cl 8

4шт.

19

353308

NUT,M6 x 1.0, Cl 8

1шт.

20

280129

NUT,1/4"-20

1шт.

21

370002

CIRCLIP,M25, External

1шт.

22

896-12024

WASHER,26mm ID x 44mm OD x 5mm Thk

1шт.

23

87327568

REPAIR KIT

Includes: Ref.s 1 Thru 22, Plus Items On Fig.s A.50.A.96.88[05] Thru [09], [12], [13], [14], E.32.A.80.02[03] Ref. 10, & A.40.A[9] Ref.s 2 & 11

1шт.

When Ordering 87327568, it is also necessary to order and install kit 87701671

1шт.
