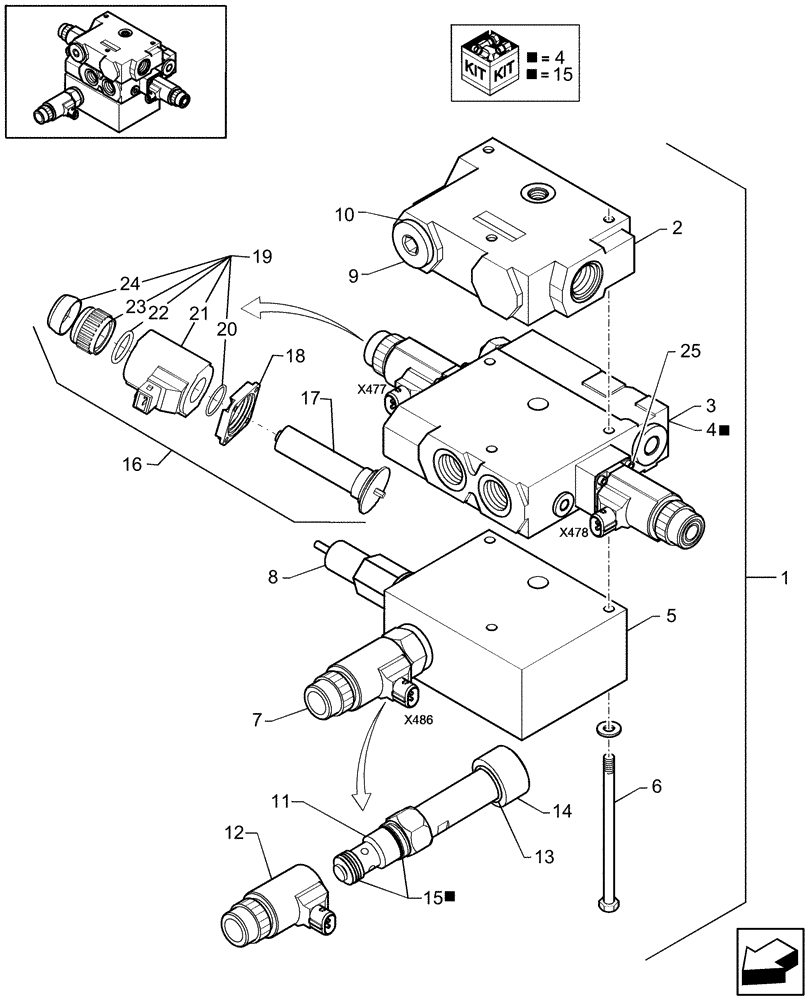

Запчасти Case IH AFX8010 (A.50.A.96.88[09]) - AUTO-GUIDANCE READY, HYDRAULIC VALVE W/PRESSURE RELIEF A - Distribution Systems

1

87313989

HYDRAULIC VALVE

, Serial Range: (2-10)

1шт.

1

87313989R

REMAN-HYD VALVE

Reman for New P/N 87313989

1шт.

1

87313989C

CORE-VALVE HYD

Return Number

1шт.

2

86580294

HYD VALVE SECTION

1шт.

3

84455371

HYDRAULIC VALVE

1шт.

4

84014433

SEAL KIT

1шт.

5

84461195

BASE PLATE

1шт.

6

84461196

THREADED TIE-ROD

3шт.

7

84461271

HYDRAULIC VALVE

Includes: Ref.s 11 Thru 15

1шт.

8

84462258

VALVE

1шт.

9

221579A1

PLUG,M22 x 1.5 ORB

Incl. Ref. 10

1шт.

10

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

11

87571183

HYDRAULIC VALVE

Auto Guidance Enable; Includes: Ref.s 13, 14, & 15

1шт.

12

87571187

VALVE

Coil, Solenoid

1шт.

13

87571186

O-RING

1шт.

14

87571184

NUT

1шт.

15

87571185

SEAL KIT

1шт.

16

84062114

SOLENOID

2шт.

17

NSS

NOT SOLD SEPARAT

Tube

1шт.

18

87601705

PLATE

Mounting

1шт.

19

87638466

SOLENOID

Solenoid

1шт.

20

87635978

O-RING,21mm ID x 1.5mm Width

1шт.

21

NSS

NOT SOLD SEPARAT

Coil, Solenoid

1шт.

22

87635979

O-RING,2.4mm Thk x 19.6mm ID

1шт.

23

87603337

NUT

Coil

1шт.

24

84429046

CAP

1шт.

25

14302924

HEX SOC SCREW,M4 x 10mm, Cl 8.8, Full Thd

8шт.
