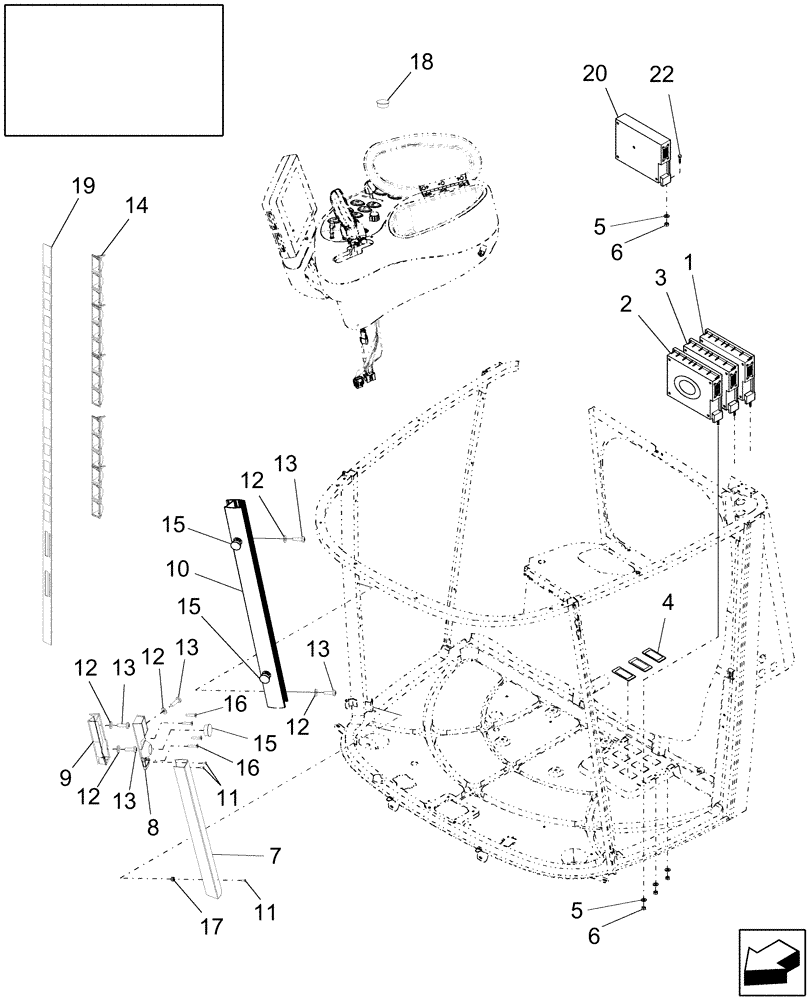

Запчасти Case IH AFX8010 (A.50.A.91) - CCM MODULES, YMIU CONTROLLER & SHAFT SPEED MONITOR A - Distribution Systems

1

87014401

ECU

CCM1

1шт.

1

87014401R

REMAN ELECT CONTROL

Reman for New PN 87014401

1шт.

1

87014401C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

87014401

ECU

CCM2

1шт.

2

87014401R

REMAN ELECT CONTROL

Reman for New PN 87014401

1шт.

2

87014401C

CORE-ELECTRONIC CONT

Return Number

1шт.

3

87014401

ECU

CCM3

1шт.

3

87014401R

REMAN ELECT CONTROL

Reman for New PN 87014401

1шт.

3

87014401C

CORE-ELECTRONIC CONT

Return Number

1шт.

4

87011216

GASKET

6шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

6

9706690

NUT,M8 x 1.25, Cl 8

1шт.

7

84059810

COVER

1шт.

8

84061202

COVER

1шт.

9

84061201

BRACKET

1шт.

10

87023985

CONTROL MONITOR

Includes Ref. 14 & 19

1шт.

11

9844205

SCREW,Phillips Drive, Oval HD, M4 x 14mm, Cl 4.8

3шт.

12

448889

WASHER,M6 x 14 x 1.6 Thk

5шт.

13

84073086

LOCK BOLT,Pan HD, M6 x 20mm

5шт.

14

86606222

Bezel

5шт.

15

86619911

PLUG

3шт.

16

86555127

SCREW,M4 x 0.7 x 23.25mm OAL, Cl 4.8, Cntr Sunk

4шт.

17

9628100

NUT,M4 x 0.7

1шт.

18

86997284

CAP

Cover

1шт.

19

87023986

DECAL

1шт.

20

86976394

ECU

YMIU

1шт.

20

86976394R

REMAN ELECT CONTROL

AFX8010 AXIAL-FLOW COMBINE, PIN HAJ105105 THRU HAJ199999, YMIU (3/03-9/06)

1шт.

20

86976394C

CORE-ELECTRONIC CONT

Return Number

1шт.

21

87282399

SOFTWARE

YMIU, Replaces 87105243, Not Shown, Start Year: 01-FEB-04

1шт.

22

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.
