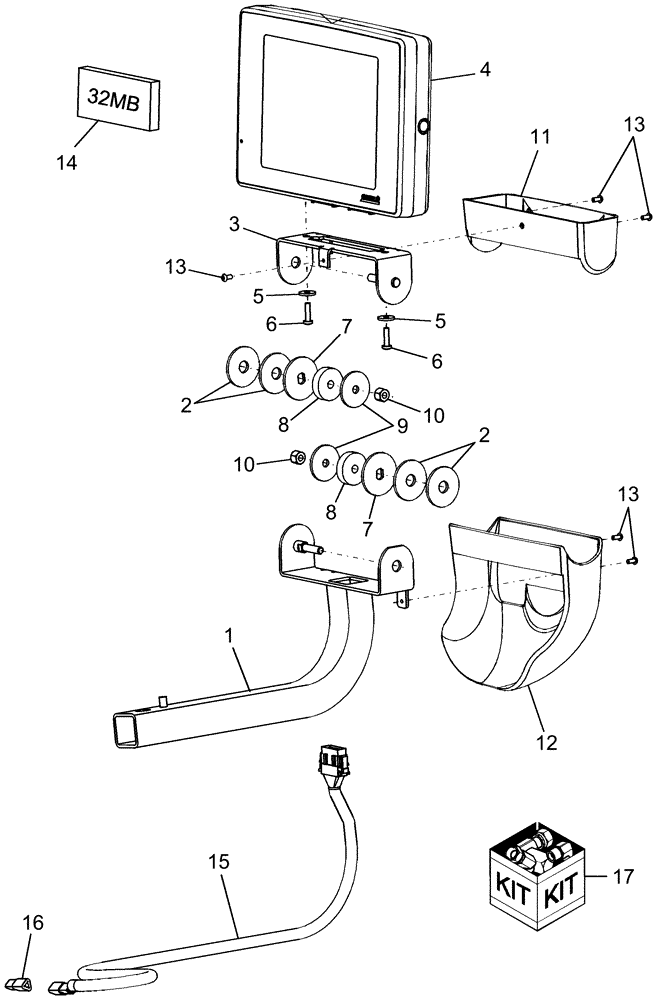

Запчасти Case IH AFX8010 (A.50.A.90) - UNIVERSAL DISPLAY PLUS MONITOR A - Distribution Systems

1

87555245

TUBE

Tube

1шт.

2

86997469

DISC

Friction

4шт.

3

86999022

BRACKET

1шт.

Shown

1шт.

3

84185362

BRACKET

1шт.

Allows CODI Display To Be Used On MY06 And Prior Units

1шт.

Not Shown

1шт.

4

87284361

CONTROL MONITOR

Wheat Color

1шт.

5

86509828

LOCK WASHER,M5

2шт.

6

86050276

BOLT,Hex, M5 x 16mm, Cl 8.8, Full Thd

2шт.

7

86997470

WASHER

2шт.

8

86997472

WASHER

Plastic

2шт.

9

86997471

WASHER

2шт.

10

86528579

NUT,M8 x 1.25

2шт.

11

86997517

COVER

Upper

1шт.

12

86976473

COVER

Bottom

1шт.

13

340-1086

SCREW,Cross Pan Hd, #8-32 x 3/8"

5шт.

14

87341265

SOFTWARE

Data Card

1шт.

15

87284688

WIRE HARNESS

ICDU Adapter

1шт.

15

87645215

WIRE HARNESS

Harness, Wire

1шт.

Allows CODI Display To Be Used On MY06 And Prior Units

1шт.

16

84058092

CONTACT HOUSING,120 Ohm Resistor

1шт.

17

87662573

SERVICE KIT

DIA Kit; Includes: Ref.s 3, 14, & 15, Plus Manuals & Reference Cards

1шт.

Allows CODI Display To Be Used On MY06 And Prior Units

1шт.
