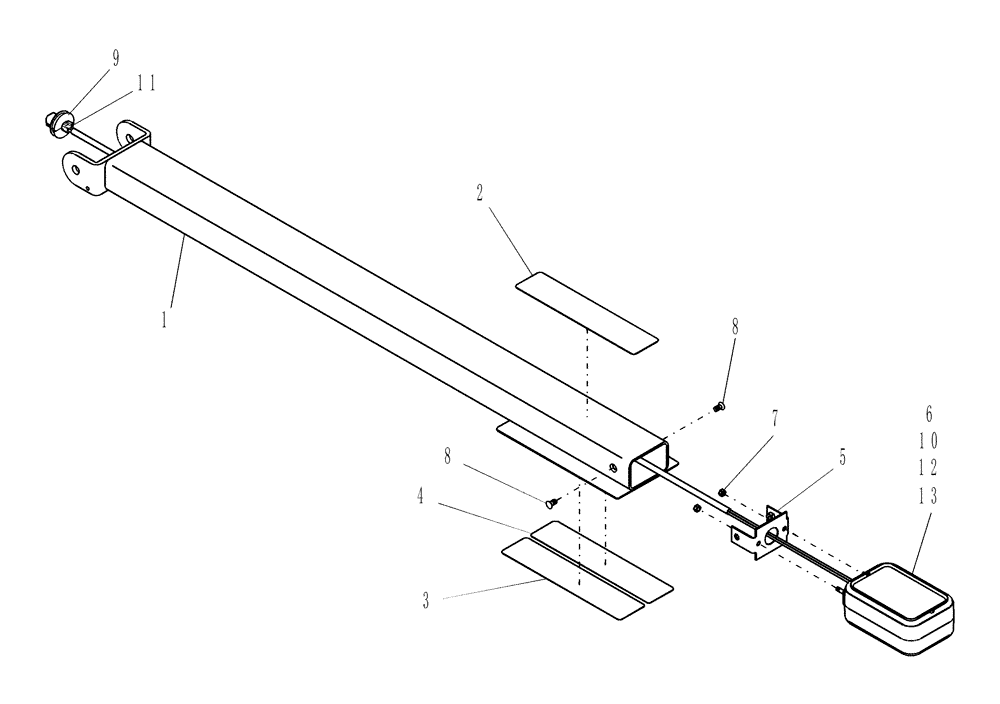

Запчасти Case IH AFX8010 (A.40.A.86) - WARNING LIGHT WITH L.H. PLATFORM EXTENSIONS - NA ONLY A - Distribution Systems

1

87109712

ARM

Supporting, For 250mm Platform Extensions

1шт.

1

87109716

ARM

Supporting, For 500mm Platform Extensions

1шт.

1

87109720

ARM

Supporting, For 750mm Platform Extensions

1шт.

2

87105392

REFLECTOR

Yellow, Front

1шт.

3

87105393

REFLECTOR

Red, Rear, Top

1шт.

4

87105394

REFLECTOR

Orange, Rear, Bottom

1шт.

5

87105372

BRACKET

1шт.

6

87000916

WARNING LIGHT

, Years: -09-FEB-04

1шт.

6

87283034

WARNING LIGHT

Includes Ref. 10 - 13, Start Year: 09-FEB-04

1шт.

7

86508813

NUT,M5, Cl 8

2шт.

8

86511855

SCREW,Flat, M6 x 1.0 x 12mm OAL, Cl 4.8

2шт.

9

87015294

GROMMET,1/2" ID x 1-1/2" OD x 0.438" Thk

1шт.

10

232212A1

LENS,135.8mm L x 90mm W, Amber

Amber

2шт.

11

222136A1

ELEC CONNECTOR,Male, 2 Pin

1шт.

12

233561A1

O-RING,0.07" Thk x 4379" ID, -48, 70 Duro

Seal

2шт.

13

A41264

BULB,#1156, 12V

1шт.
