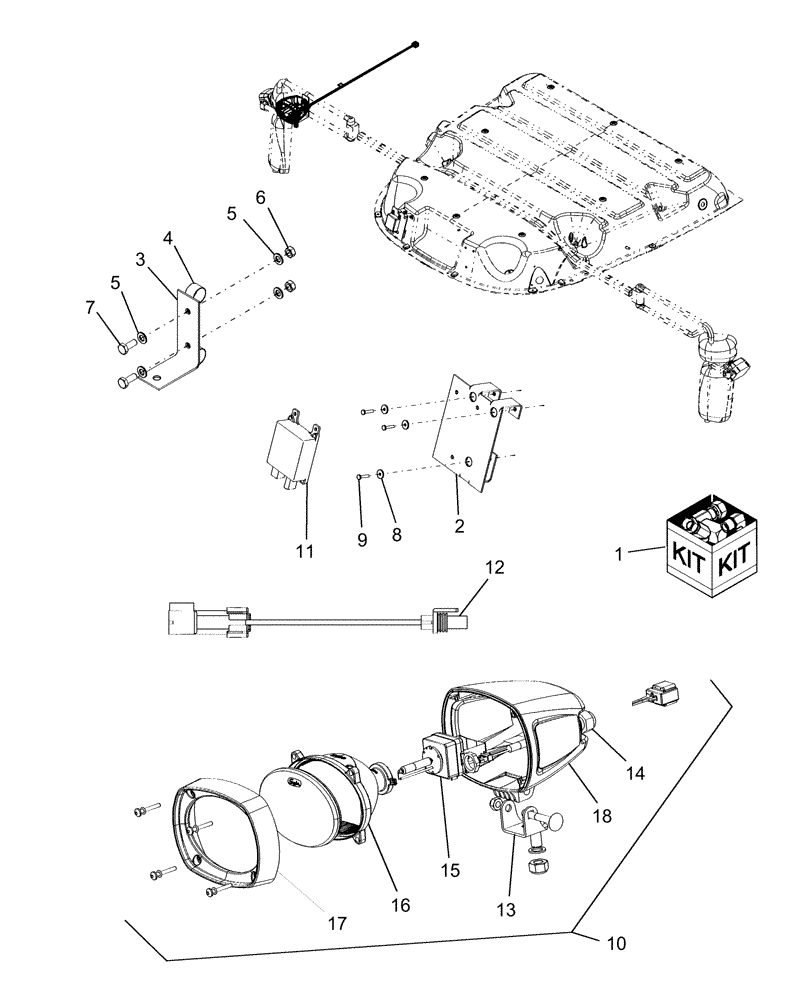

Запчасти Case IH AFX8010 (A.40.A.85[8]) - MID DISTANCE HID LIGHT - R.H. MIRROR MOUNTED A - Distribution Systems

1

84083982

DIA KIT, HARVESTER

Light, HID Mid Distance - Includes Ref. 2 thru 18

1шт.

2

87281521

BRACKET

1шт.

3

87280377

BRACKET

1шт.

4

86637996

CLAMP,28.6mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

5

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

7

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

8

335872

WASHER,4.1mm ID x 15mm OD x 1.6mm Thk

3шт.

9

86511824

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 20mm, Cl 4.8

3шт.

10

87282113

HEADLAMP

Includes Ref. 11 thru 18

1шт.

11

87106306

BALLAST

1шт.

11

87475204R

REMAN ELECT CONTROL

AFX8010 AXIAL-FLOW COMBINE - PIN HAJ105105 THRU HAJ199999 (3/03-9/06), Reman for New PN 87106306

1шт.

11

87475204C

CORE-ELECTRONIC CONT

Return Number

1шт.

12

87282630

WIRE HARNESS

HID Light, RH Mirror

1шт.

13

87282631

BRACKET

1шт.

14

87282632

WIRE HARNESS

HID Light, RH Mirror (Inside Lamp Housing)

1шт.

15

87282633

BULB

1шт.

16

87282634

LENS

and Reflector

1шт.

17

87282635

BEZEL

with Foam

1шт.

18

87282636

HOUSING

1шт.
