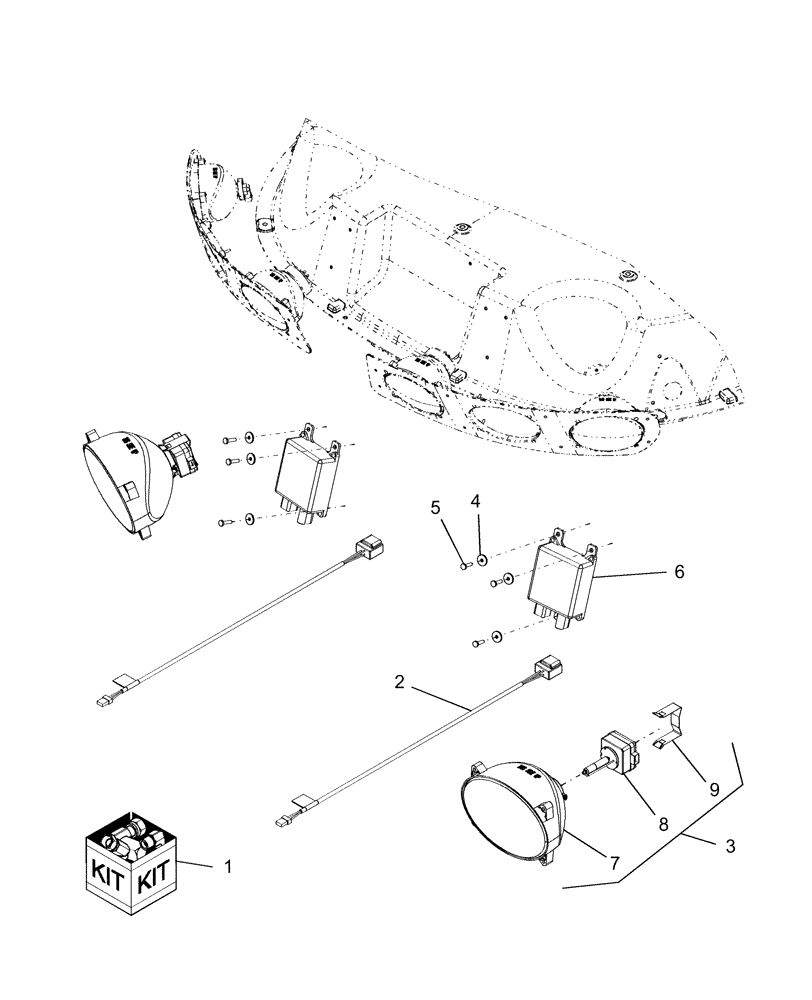

Запчасти Case IH AFX8010 (A.40.A.85[7]) - KIT, HID ROOF LIGHTS A - Distribution Systems

1

84084476

DIA KIT, HARVESTER

HID Roof Lights - Includes Ref. 2 thru 6

1шт.

2

87108021

WIRE HARNESS

HID

2шт.

3

87283214

HEADLAMP

Assy

2шт.

4

335872

WASHER,4.1mm ID x 15mm OD x 1.6mm Thk

6шт.

5

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

6шт.

6

87106306

BALLAST

2шт.

6

87475204R

REMAN ELECT CONTROL

AFX8010 AXIAL-FLOW COMBINE - PIN HAJ105105 THRU HAJ199999 (3/03-9/06), Reman for New PN 87106306

2шт.

6

87475204C

CORE-ELECTRONIC CONT

Return Number

2шт.

7

87106354

HEADLAMP

2шт.

8

87722023

BULB,HID, 85V, 35W

HID

2шт.

9

87106287

CLIP

2шт.
