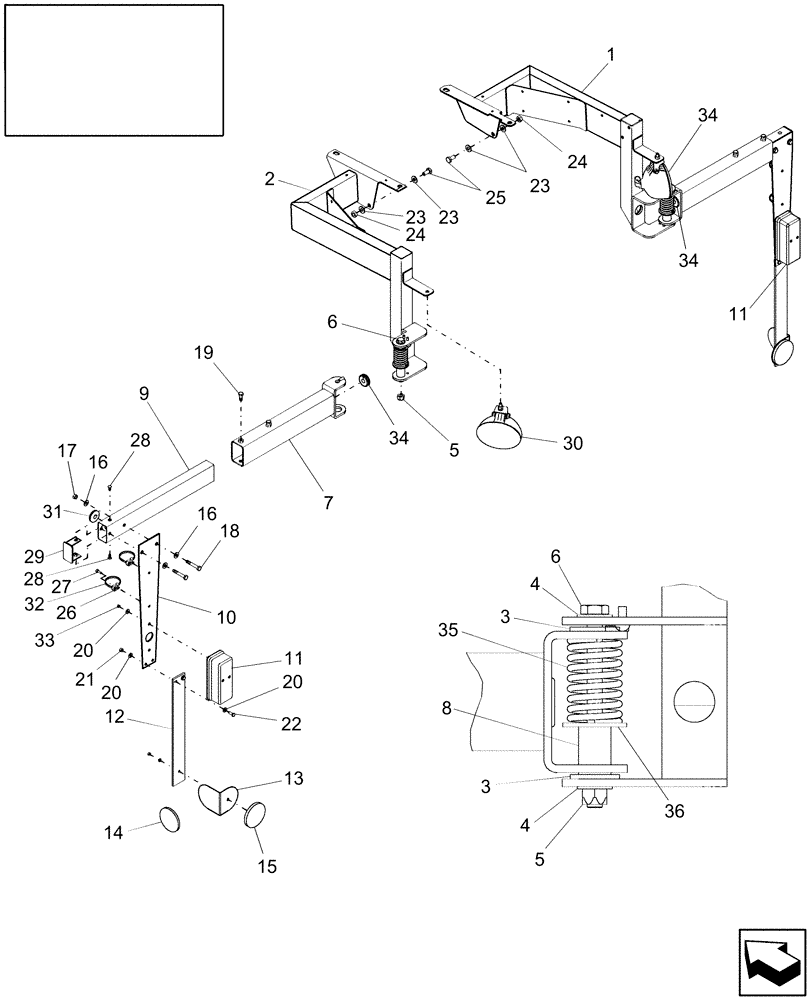

Запчасти Case IH AFX8010 (A.40.A.85[6]) - WARNING LIGHTS, REAR - EU ONLY A - Distribution Systems

1

87284248

SUPPORT ASSY.

RH

1шт.

2

87284250

SUPPORT ASSY.

LH

1шт.

3

86997936

WASHER,12.7mm ID x 38.1mm OD x 3.18mm Thk

4шт.

4

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

5

412672

NUT,Hex, M12 x 1.75, Cl 10

2шт.

6

385427

BOLT,Hex, M12 x 1.75 x 150mm, Cl 8.8

2шт.

7

87001248

ARM

2шт.

8

87105383

SPACER,12.7mm ID x 25.4mm OD x 96.4mm L

, Years: -09-FEB-04

2шт.

8

87283257

SPACER

, Start Year: 09-FEB-04

2шт.

9

87001250

EXTENSION

2шт.

10

87001252

MOUNTING PLATE

2шт.

11

87001253

LAMP

Stop / Tail / Turn

2шт.

12

84442354

SUPPORT

2шт.

13

84433683

BRACKET

2шт.

14

435895

REFLECTOR,80mm OD, Orange

Amber

2шт.

15

470023

REFLECTOR

Red

2шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

17

9706690

NUT,M8 x 1.25, Cl 8

4шт.

18

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

4шт.

19

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

20

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

12шт.

21

9706755

NUT,M6, Cl 8

4шт.

22

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

23

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

24

100016

NUT,M10 x 1.5, Cl 8

2шт.

25

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

26

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Base, Wire Tie

4шт.

27

325911

RIVET,Pop, 4.75mm OD x 7.4mm L

4шт.

28

86511855

SCREW,Flat, M6 x 1.0 x 12mm OAL, Cl 4.8

4шт.

29

87001324

BRACKET

2шт.

29

87284717

BRACKET

2шт.

30

87284332

WORK LAMP,Halogen, 12V, 50W, Clear

Includes: Bulb

2шт.

30

139119A1

BULB,#886, 12V, 50W

2шт.

31

87015293

GROMMET,1/2" ID x 1 1/4" Groove Dia, Str Cut

2шт.

32

86566989

CABLE TIE,208mm L

CABLE STRAP

4шт.

33

86508813

NUT,M5, Cl 8

4шт.

34

87015294

GROMMET,1/2" ID x 1-1/2" OD x 0.438" Thk

2шт.

35

87283260

SPRING

Compression, Start Year: 09-FEB-04

2шт.

36

87026355

WASHER,12.8mm ID x 50mm OD x 3mm Thk

, Start Year: 09-FEB-04

2шт.
