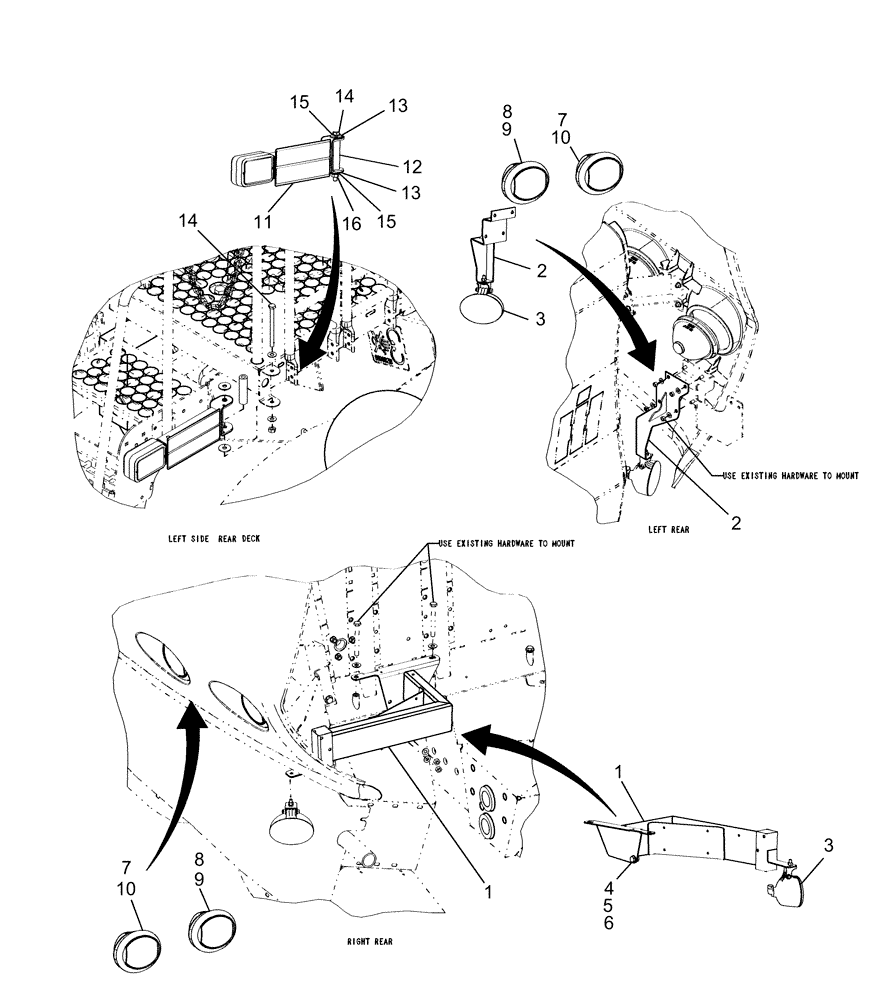

Запчасти Case IH AFX8010 (A.40.A.85[5]) - LIGHTS, REAR - STANDARD FOR NA, AUSTRALIA, RUSSIA A - Distribution Systems

1

87280716

SUPPORT

RH, Years: -09-FEB-04

1шт.

1

87284252

SUPPORT

RH, Start Year: 09-FEB-04

1шт.

2

87280783

SUPPORT

LH

1шт.

3

87001315

WORK LAMP,Halogen, 12V, 37.5W, Clear

, Years: -09-FEB-04

2шт.

3

87284332

WORK LAMP,Halogen, 12V, 50W, Clear

, Start Year: 09-FEB-04

2шт.

3

139119A1

BULB,#886, 12V, 50W

2шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

5

100016

NUT,M10 x 1.5, Cl 8

1шт.

6

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

7

86995359

LAMP

Rear, Red

2шт.

8

86995360

LAMP

Rear, Amber

2шт.

9

87106261

BULB,12V

#3156

2шт.

10

87106262

BULB

#3157

2шт.

11

87109722

WARNING LIGHT

LH Platform, Years: -09-FEB-04

1шт.

11

87283298

WARNING LIGHT

LH Platform, Start Year: 09-FEB-04

1шт.

12

87105383

SPACER,12.7mm ID x 25.4mm OD x 96.4mm L

1шт.

13

86997936

WASHER,12.7mm ID x 38.1mm OD x 3.18mm Thk

2шт.

14

385427

BOLT,Hex, M12 x 1.75 x 150mm, Cl 8.8

1шт.

15

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

16

9706685

NUT,M12 x 1.75, Cl 8

1шт.
