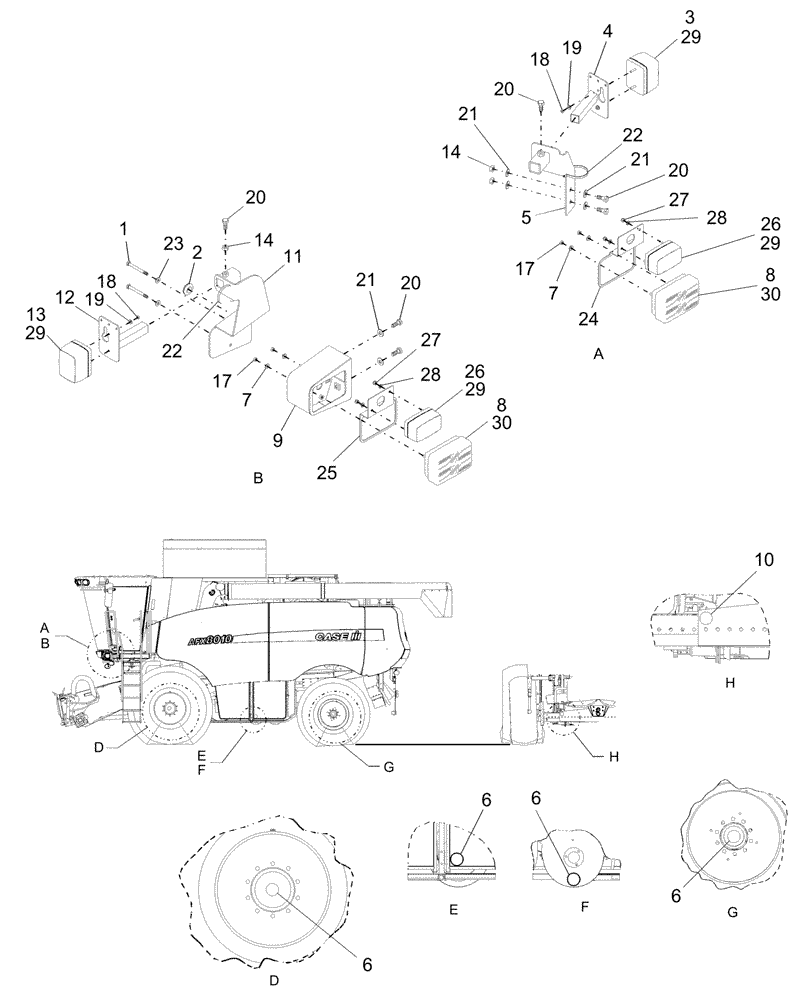

Запчасти Case IH AFX8010 (A.40.A.85[4]) - LIGHTS, FRONT PLATFORM - STANDARD - EU ONLY A - Distribution Systems

1

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

2шт.

2

103258

GROMMET,5/8" ID x 7/8" Groove Dia

1шт.

3

84067994

SIDE LAMP ASSY

LH, Turn

1шт.

4

84441698

SUPPORT

LH

1шт.

5

87281255

SUPPORT

LH

1шт.

6

435895

REFLECTOR,80mm OD, Orange

Amber

6шт.

7

322356

BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk

4шт.

8

84067986

HEADLAMP,12V, 21W, Amber/Clear

2шт.

9

84607394

HOUSING

1шт.

10

437024

REFLECTOR

Red

2шт.

11

87106695

BRACKET

1шт.

12

84441699

SUPPORT

1шт.

13

84067995

SIDE LAMP ASSY

RH, Turn

1шт.

14

9706690

NUT,M8 x 1.25, Cl 8

3шт.

15

86616173

WIRE HARNESS

RH - Not Shown

1шт.

16

86616172

WIRE HARNESS

LH - Not Shown

1шт.

17

86508813

NUT,M5, Cl 8

4шт.

18

100012

NUT,M4 x 0.7, Cl 8

4шт.

19

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

4шт.

20

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

21

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

22

86566989

CABLE TIE,208mm L

CABLE STRAP

2шт.

23

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

24

86596662

BRACKET

LH

1шт.

Austria Only

1шт.

25

84431478

BRACKET

RH

1шт.

Austria Only

1шт.

26

84067992

LAMP

2шт.

Austria Only

1шт.

27

43440

LOCK NUT,M5 x .8, Cl 8

4шт.

Austria Only

1шт.

28

140014

WASHER,M5 x 10mm OD x 1mm Thk

4шт.

Austria Only

1шт.

29

398877

BULB,12V, 21W

(1) Included with Ref. 3, 8 & 13

4шт.

30

86616250

BULB,12V, 5W

(1) Included with Ref. 26

2шт.

Austria Only

1шт.
