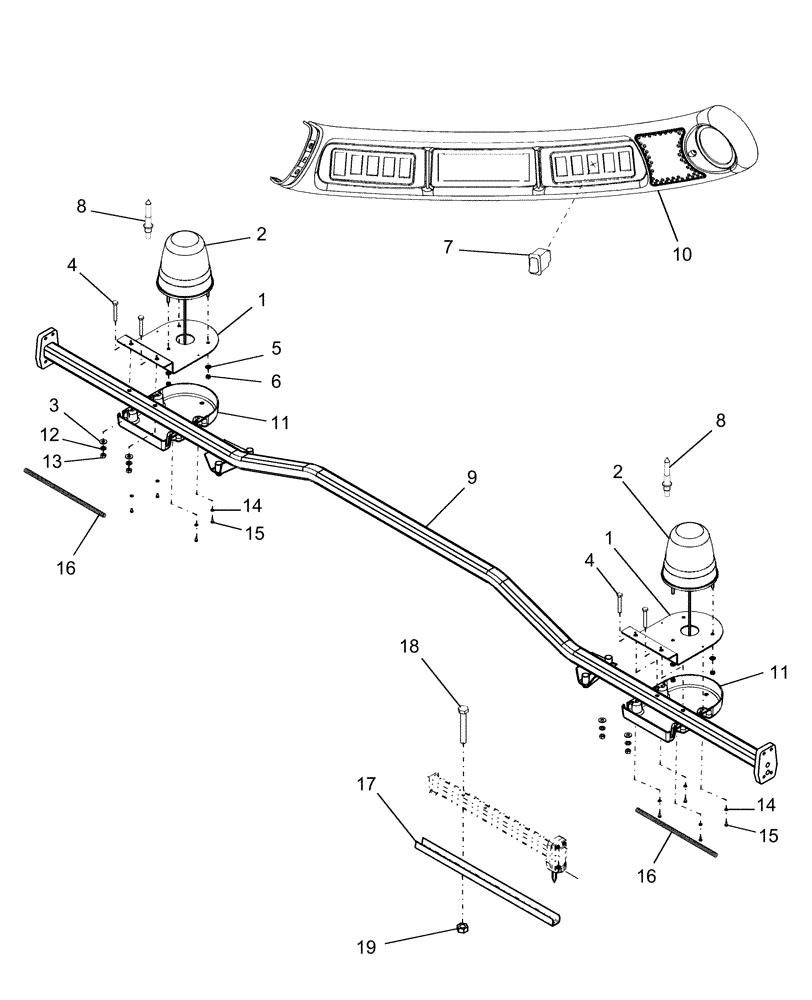

Запчасти Case IH AFX8010 (A.40.A[9]) - CAB ROOF BEACONS, ROTATING A - Distribution Systems

1

87341279

SUPPORT

2шт.

2

84067911

BEACON

2шт.

2

87050694

BEACON,12V, 55W, Amber

, Start Serial: HAJ106527

2шт.

3

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

4

86900240

BOLT,Hex, M8 x 55mm, Cl 8.8

4шт.

5

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

6

9706755

NUT,M6, Cl 8

6шт.

7

84320234

BEACON SWITCH

Beacons

1шт.

8

86616248

BULB,H1, 12V, 55W

2шт.

9

87107127

SUPPORT

, Years: -17-OCT-05

1шт.

9

87326681

SUPPORT

, Start Year: 17-OCT-05

1шт.

10

86995945

PANEL

1шт.

11

87331119

COVER

2шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

13

9706690

NUT,M8 x 1.25, Cl 8

4шт.

14

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

8шт.

15

87367495

SCREW,Pozidrive, Pan HD, M4 x 0.7 x 8mm

Thread Rolling, M4 x 8

8шт.

16

87283961

INSULATOR

Conduit

2шт.

17

87381862

BRACKET

Without Beacon

2шт.

18

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

Without Beacon

4шт.

19

86629542

NUT,M8 x 1.25, Cl 8.8

Without Beacon

4шт.
