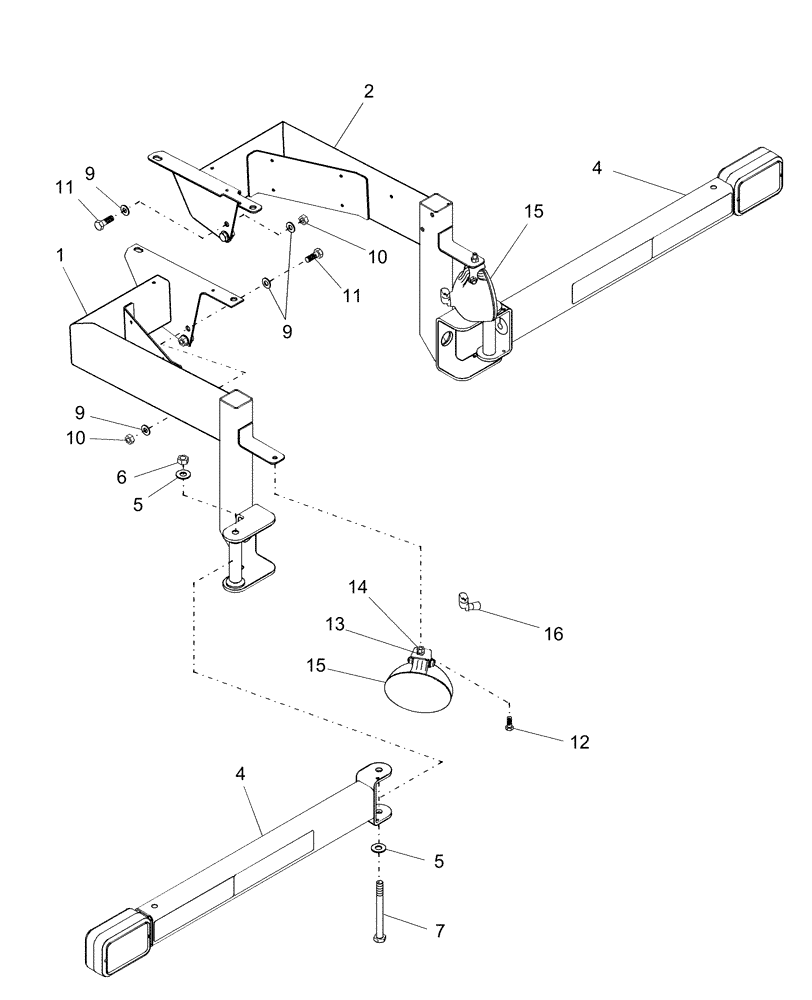

Запчасти Case IH AFX8010 (A.40.A[8]) - WARNING LIGHTS, REAR A - Distribution Systems

1

87108902

ARM

LH

1шт.

2

87109857

SUPPORT

RH

1шт.

3

86997936

WASHER,12.7mm ID x 38.1mm OD x 3.18mm Thk

4шт.

4

87105377

WARNING LIGHT

Assembly

2шт.

4

87105381

WARNING LIGHT

Assembly

2шт.

Used with Oversize and Dual Tires

1шт.

5

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

6

9706685

NUT,M12 x 1.75, Cl 8

2шт.

7

385427

BOLT,Hex, M12 x 1.75 x 150mm, Cl 8.8

2шт.

8

87105383

SPACER,12.7mm ID x 25.4mm OD x 96.4mm L

2шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

10

100016

NUT,M10 x 1.5, Cl 8

4шт.

11

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

12

PL

PROCURE LOCALLY

Bolt, M8

2шт.

13

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

2шт.

14

9706690

NUT,M8 x 1.25, Cl 8

2шт.

15

87001315

WORK LAMP,Halogen, 12V, 37.5W, Clear

2шт.

16

87107077

BULB,Halogen, 12V, 37.5W

2шт.
