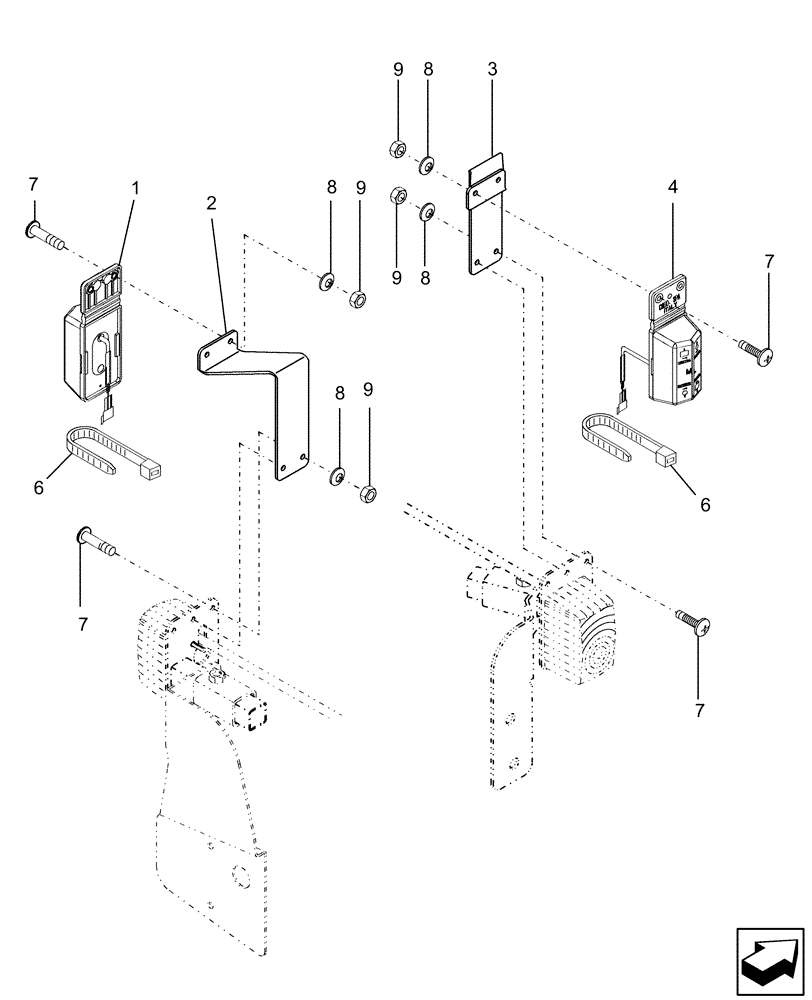

Запчасти Case IH AFX8010 (A.40.A[7]) - LIGHTS, SIDE MARKING - EU A - Distribution Systems

1

84437311

HEADLAMP,24V, 5W, Clear

RH, Includes: Ref. 5

1шт.

2

84441701

SUPPORT

RH

1шт.

3

84441700

BRACKET

Support, LH

1шт.

4

84437310

LAMP

LH, Includes: Ref. 5

1шт.

5

89626322

BULB,#R5W, 5w

Not Shown

1шт.

6

86566989

CABLE TIE,208mm L

CABLE STRAP

2шт.

7

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

8шт.

8

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

8шт.

9

100012

NUT,M4 x 0.7, Cl 8

8шт.
