(A.30.A.88[07]) - WIRE HARNESS, EXPANSION

Запчасти Case IH AFX8010 (A.30.A.88[07]) - WIRE HARNESS, EXPANSION A - Distribution Systems

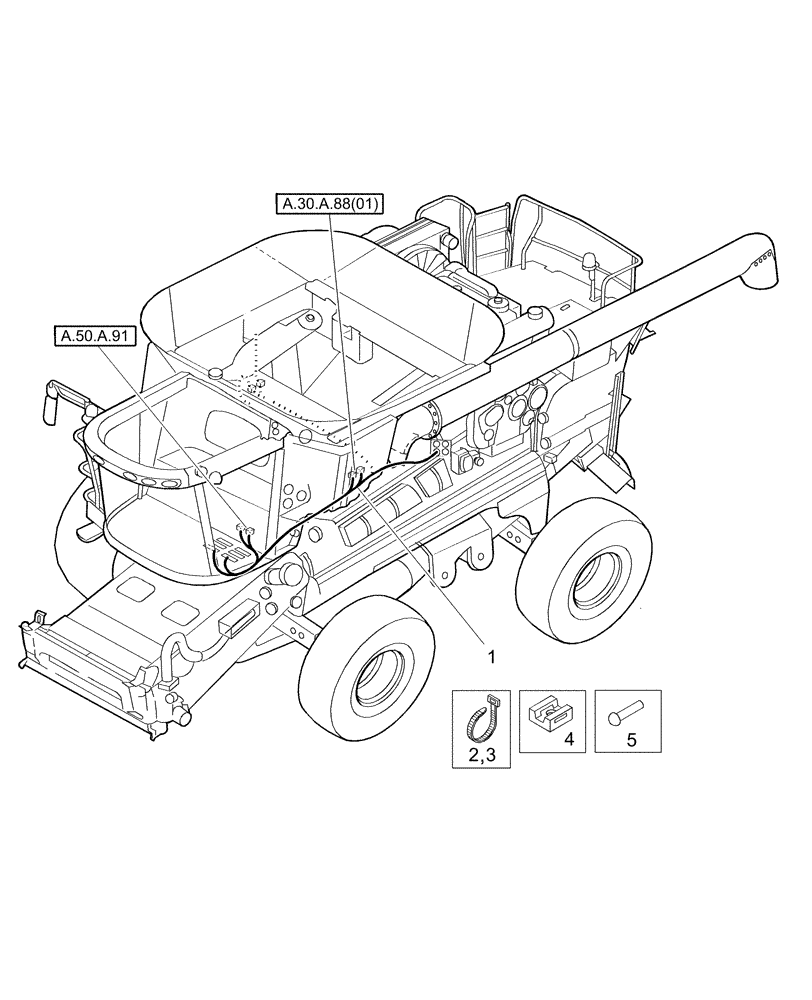

Схема запчастей Case IH AFX8010 - (A.30.A.88[07]) - WIRE HARNESS, EXPANSION A - Distribution Systems
5
1
4
a.50.a.91
a.30.a.88(01)
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87108001

WIRE HARNESS

Expansion, Years: -31-JUL-03

1шт.

1

87280758

WIRE HARNESS

Expansion, Start Year: 01-AUG-03

1шт.

2

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP 11"

1шт.

3

86566989

CABLE TIE,208mm L

CABLE STRAP 7.5"

1шт.

4

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Base, Wire Tie

1шт.

5

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.
