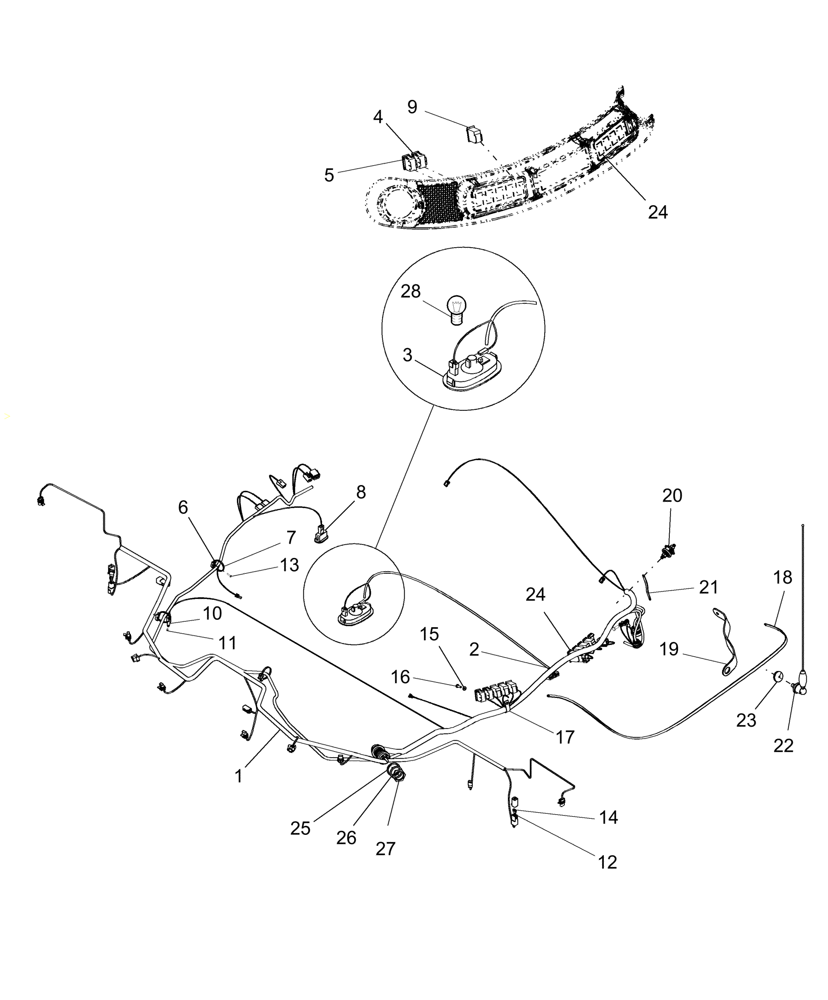

Запчасти Case IH AFX8010 (A.30.A.88[04]) - CAB ROOF ELECTRICAL A - Distribution Systems

1

87281469

WIRE HARNESS

Outer, Years: -09-FEB-04

1шт.

1

87283295

WIRE HARNESS

Outer, Start Year: 09-FEB-04

1шт.

2

87032331

WIRE HARNESS

Inner

1шт.

3

86622305

CEILING LAMP

Includes Ref. 28

1шт.

4

84320248

LIGHT SWITCH

Rear Work

1шт.

5

84320268

LIGHT SWITCH

Front Work

1шт.

6

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

3шт.

7

86566989

CABLE TIE,208mm L

CABLE STRAP

3шт.

8

84067961

CEILING LAMP

1шт.

9

84320252

WINDSHIELD WIPER SWI

1шт.

9

84320250

SWITCH, GRAIN TANK C

Grain Tank Covers

1шт.

10

9990447

LIGHT SWITCH

Interior Lamp

1шт.

11

87106463

SELF-TAP SCREW,M4 x 7.8

1шт.

12

84074642

WIRE CONNECTOR,Male

2шт.

13

412475

SCREW,Phil Pan Hd, M4 x 16mm, Cl 4.8, Full Thd

3шт.

14

700514

CLAMP,3.8mm, Coat, M8 Bolt

1шт.

15

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

16

86511830

SCREW,Phillips Drive, Pan HD, M6 x 20mm, Cl 4.8

1шт.

17

9861378

CONTACT HOUSING

6-Pin Wedge

2шт.

18

87107165

GROUND STRAP

Antenna

1шт.

19

84149985

CABLE

Cable, Antenna

1шт.

20

87109037

BLOCK

1шт.

21

87109036

CABLE,170mm L

Ground Strap

1шт.

22

86975123

ANTENNA

Radio

1шт.

23

84607475

GROMMET,M6 x 36.5mm OD x 25mm Thk

1шт.

24

84320263

BLANK-OFF PLUG

Cover, Switch

1шт.

25

87010222

GASKET

1шт.

26

636665

LOCK WASHER,43.18mm ID x 52.68mm OD x 1.57mm Thk

1шт.

27

86619907

NUT,1.6875"-18

1шт.

28

86616249

BULB,12V, 10W

1шт.
