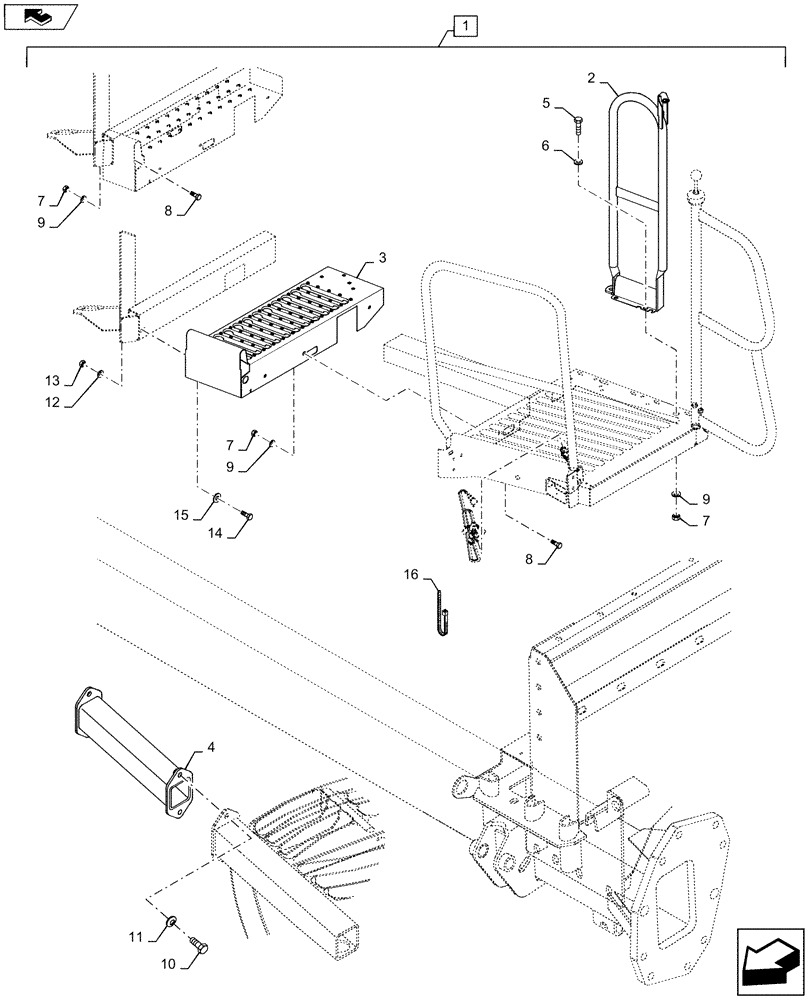

Запчасти Case IH AFX8010 (88.088.01) - DIA KIT, PLATFORM EXTERNAL 250MM (88) - ACCESSORIES

1

84084759

DIA KIT, HARVESTER

Platform External 250mm, Incl 2 - 16

1шт.

2

86592225

HANDRAIL

1шт.

3

87105996

PLATFORM

1шт.

4

84607454

EXTENSION

Lengthening

1шт.

5

BER43139

BOLT

5шт.

6

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

5шт.

7

100016

NUT,M10 x 1.5, Cl 8

11шт.

8

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

6шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

11шт.

10

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

12

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

13

9706685

NUT,M12 x 1.75, Cl 8

1шт.

14

43151

BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

1шт.

15

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.

16

86566989

CABLE TIE,208mm L

Spanband to Tighting Strap

3шт.
