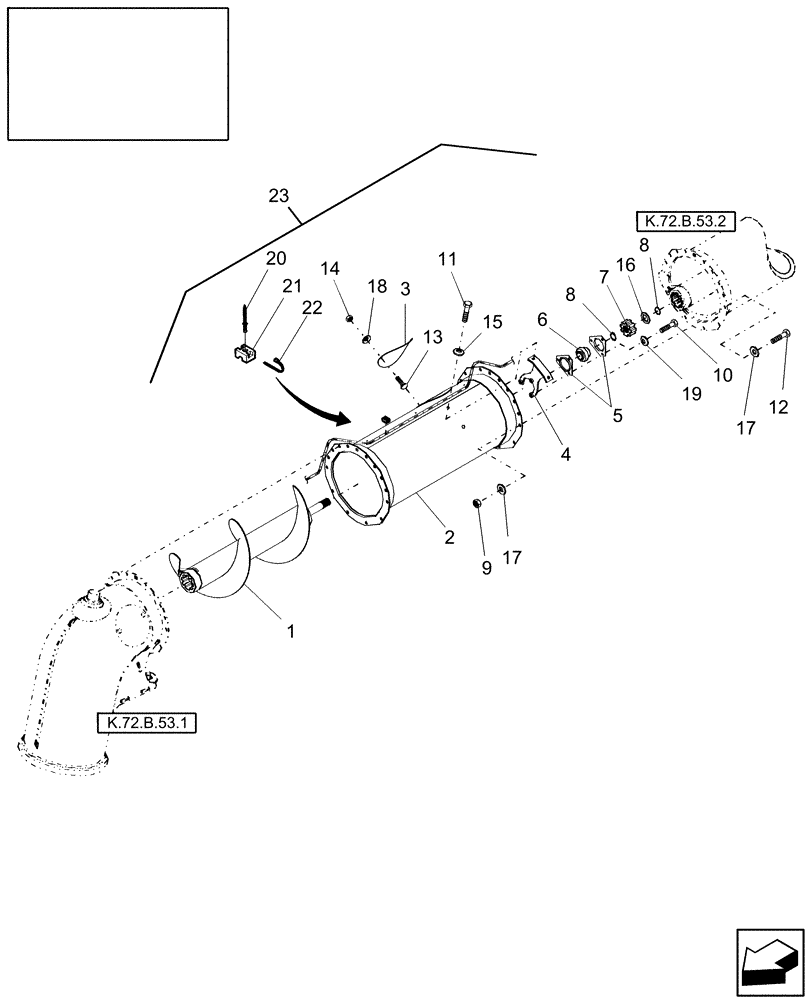

Запчасти Case IH AFX8010 (K.72.B.53[3]) - UNLOADING AUGER EXTENSION, 0.9 M[3 FT] K - Crop Processing

1

84447939

AUGER

Standard & Perforated, Serial Range: -HAJ200028

1шт.

1

87575223

AUGER

Standard & Perforated, Start Serial: HAJ200029

1шт.

1

87280341

AUGER

Extended Wear, Serial Range: -HAJ200028

1шт.

1

87575225

AUGER

Extended Wear, Start Serial: HAJ200029

1шт.

2

87354454

EXTENSION

Black

1шт.

3

87552541

COVER

1шт.

4

84072623

SUPPORT

1шт.

5

86620026

FLANGED BEARING

2шт.

6

87605590

BEARING ASSY,35mm ID x 72mm OD x 19mm W

1шт.

6

87016482

SET SCREW,M10 x 10mm

Set Screw

1шт.

Not Shown

1шт.

7

87011705

HUB,21T

1шт.

8

370004

SNAP RING,M35 x 1.5mm Thk, External

2шт.

9

9706685

NUT,M12 x 1.75, Cl 8

19шт.

10

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

3шт.

11

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

12

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

19шт.

13

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

14

9706690

NUT,M8 x 1.25, Cl 8

2шт.

15

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

16

84072793

WASHER,35.5mm ID x 58mm OD x 5mm Thk

1шт.

17

394630

WASHER,13mm ID x 28mm OD x 4mm Thk

38шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

20

445394

RIVET,Pop, 3/16" x 1/2" OAL

3шт.

21

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

3шт.

22

86566989

CABLE TIE,208mm L

CABLE STRAP 45 x 4.8

3шт.

23

87280553

AUGER

Extension Assy, Standard & Perforated, Serial Range: -HAJ200028

1шт.

23

87471942

AUGER

Assy, Standard & Perforated, Start Serial: HAJ200029

1шт.

23

84084285

Assy, Extended Wear, Serial Range: -HAJ200028

1шт.

23

87471943

AUGER

Assy, Extended Wear, Start Serial: HAJ200029

1шт.
