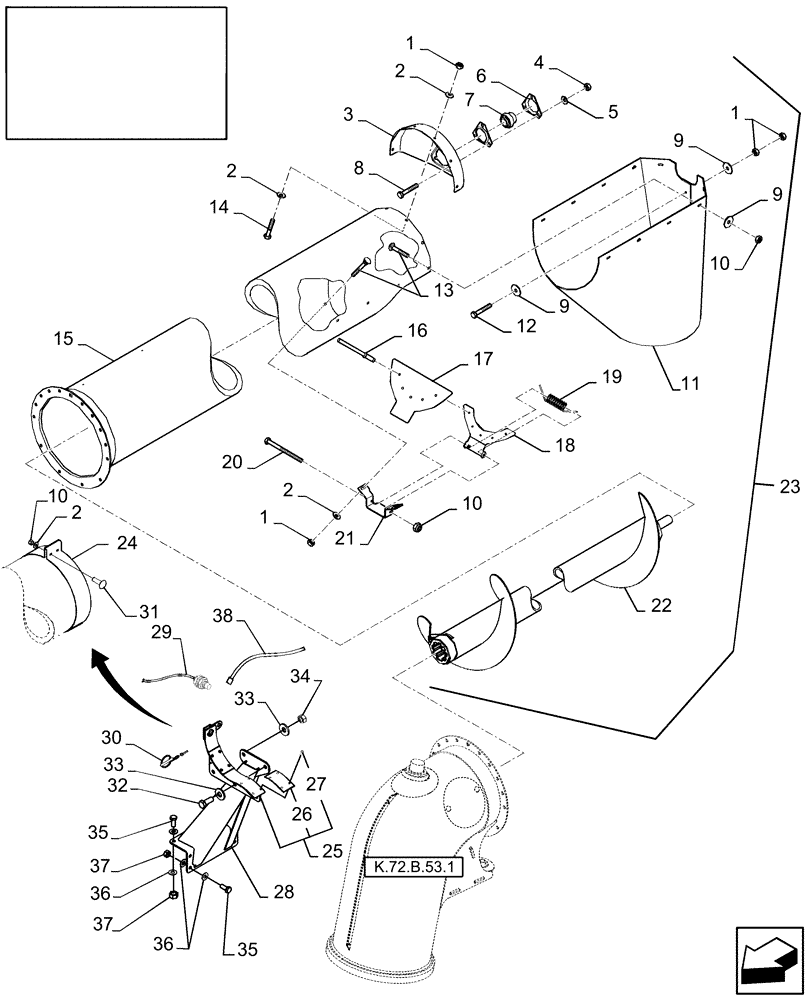

Запчасти Case IH AFX8010 (K.72.B.53[2]) - HORIZONTAL UNLOADING AUGER, 18 FT K - Crop Processing

1

9706690

NUT,M8 x 1.25, Cl 8

14шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

3

84075462

COVER

1шт.

4

100016

NUT,M10 x 1.5, Cl 8

3шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

6

86548970

FLANGED BEARING

1шт.

6

84320112

FLANGE

Flanges

1шт.

7

84069440

BALL BEARING,30 mm ID x 62 mm OD x 48.4 mm

1шт.

8

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

9

322

WASHER,8.73mm ID x 42.07mm OD x 3.43mm Thk

18шт.

10

832-46408

NUT,M8 x 1.25, Cl 8

11шт.

11

84064911

CANVAS,1288.3mm W x 1396.9mm L

DISCHARGE SPOUT

1шт.

12

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

13

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

12шт.

14

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

15

87284775

UNLOADING TUBE,356 mm DIA x 5034.7 mm L

Standard & Extended Wear, Grey

1шт.

15

87470157

TUBE

Standard & Extended Wear, Red

1шт.

15

87284781

TUBE,5034.7 mm L

Perforated

1шт.

16

325911

RIVET,Pop, 4.75mm OD x 7.4mm L

5шт.

17

84434535

RUBBER SEAL

1шт.

18

84069871

SUPPORT

Cover, Lid

1шт.

19

84320110

SPRING

1шт.

20

86528166

BOLT,M8 x 1.25 x 126.58mm, Cl 8.8

1шт.

21

84069872

SUPPORT

1шт.

22

84447941

AUGER,5400.5mm L

Standard & Perforated

1шт.

22

87280339

AUGER,5400.5mm L

Extended Wear

1шт.

23

NLS

NO LONGER SERVICED

Assembly, Standard; Includes: Ref.s 1 Thru 22

1шт.

23

NLS

NO LONGER SERVICED

Assembly, Perforated; Includes: Ref.s 1 Thru 22

1шт.

23

87663132

UNLOADING TUBE

Assembly, Extended Wear RFC; Includes: Ref.s 1 Thru 22

1шт.
