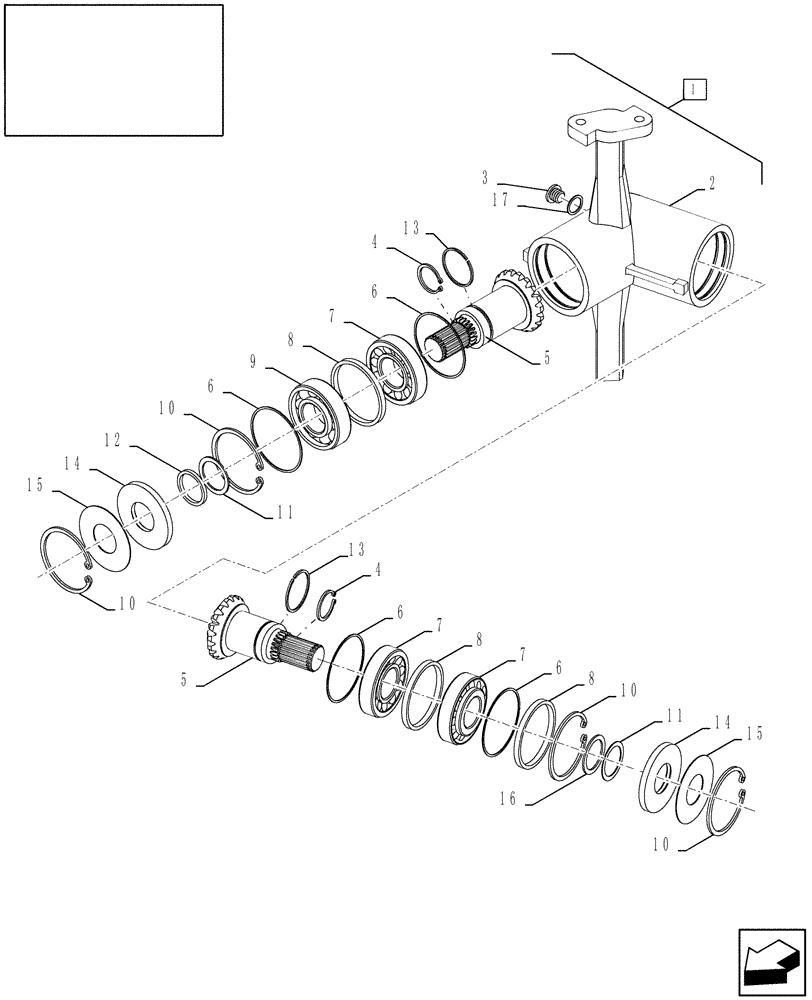

Запчасти Case IH AFX8010 (K.72.B.40[5]) - UNLOADING AUGER, GEARBOX - PIN HAJ106401 AND AFTER K - Crop Processing

1

87331084

GEARBOX

Includes: 2 - 17

1шт.

87331084R

REMAN-GEARBOX

AFX8010 PIN HAJ106401 & Aft.

1шт.

87331084C

CORE-GEARBOX

Return Number

1шт.

2

87331121

HOUSING

Casting # 1.175.030300

1шт.

3

84437088

PLUG,3/8" Gas

1шт.

4

87349260

SNAP RING,M34, External

2шт.

5

87331114

BEVEL GEAR

2шт.

6

87346736

SHIM KIT

4шт.

7

26799990

TAPERED BEARING,55mm ID x 100mm OD x 22.75mm W

3шт.

8

87332420

SPACER, RING

3шт.

9

ST265

BALL BEARING,55mm ID x 100mm OD x 21mm Thk

1шт.

10

370026

SNAP RING,M100 x 3mm Thk, Internal

4шт.

11

87332423

SHIM KIT

2шт.

12

87345894

SHIM,55mm ID x 68mm OD x 3mm Thk

(M55 x 68)

1шт.

13

800-5155

SNAP RING,M55 x 3mm Thk, External

2шт.

14

87331115

SEAL,55mm ID x 100mm OD x 10mm Thk

2шт.

15

87332418

WASHER,55.5mm ID x 99.9mm OD x 1mm Thk

2шт.

16

87345893

SHIM,55mm ID x 68mm OD x 1mm Thk

(M55 x 68)

1шт.

17

9511034

SEAL

1шт.
