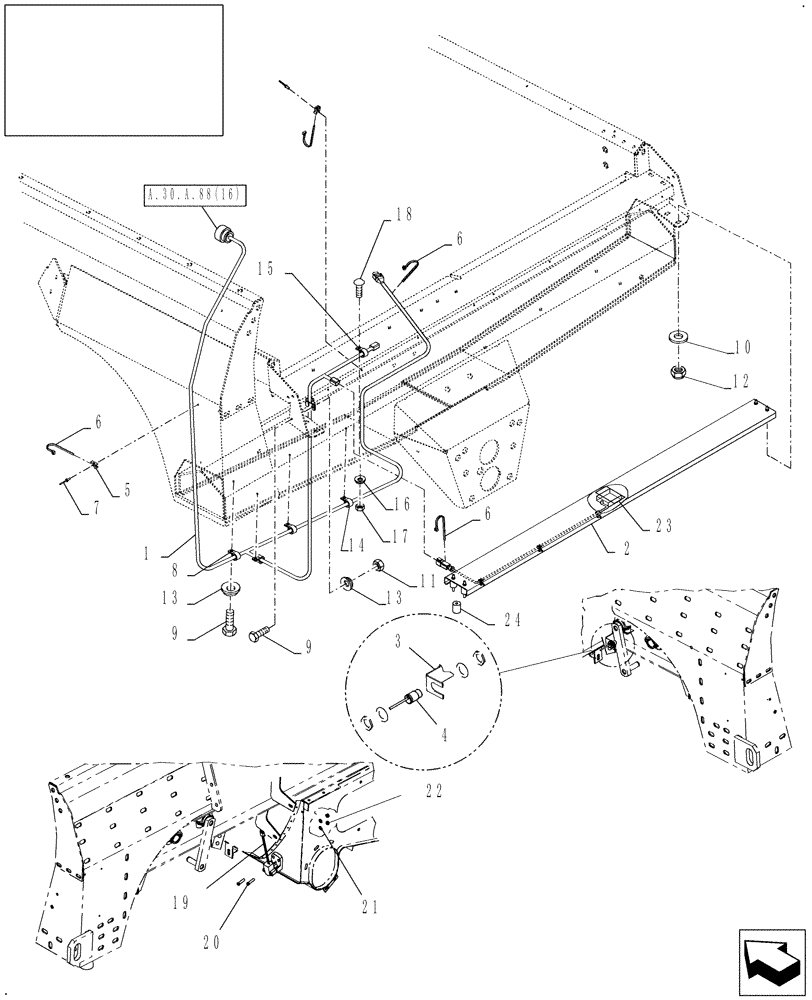

Запчасти Case IH AFX8010 (A.30.A.88[03]) - WIRE HARNESS, REAR, LOWER FRAME A - Distribution Systems

1

86900862

WIRE HARNESS

STD Shoe

1шт.

2

84131598

DETECTOR

Detector; Includes Ref. 23 & 24

1шт.

3

86997800

BRACKET

1шт.

4

84058862

SENSOR

Shaker Speed

1шт.

5

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Base, Tie Wrap

3шт.

6

86566989

CABLE TIE,208mm L

CABLE STRAP

7шт.

7

445394

RIVET,Pop, 3/16" x 1/2" OAL

3шт.

8

619284

CLAMP,23.8mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

9

120100

BOLT,M6 x 20mm, Cl 8.8

5шт.

10

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

4шт.

10

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

Replaces 9824259

4шт.

11

9706755

NUT,M6, Cl 8

1шт.

12

353308

NUT,M6 x 1.0, Cl 8

4шт.

13

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

5шт.

14

89837692

CLAMP

4шт.

15

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

17

9706690

NUT,M8 x 1.25, Cl 8

4шт.

18

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

19

87108588

SENSOR

Tailings Volume

1шт.

20

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

21

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

4шт.

22

832-46408

NUT,M8 x 1.25, Cl 8

2шт.

23

NSS

NOT SOLD SEPARAT

Sensor, Grain Loss

1шт.

24

84131033

DAMPER,25mm OD x 62mm L

4шт.
