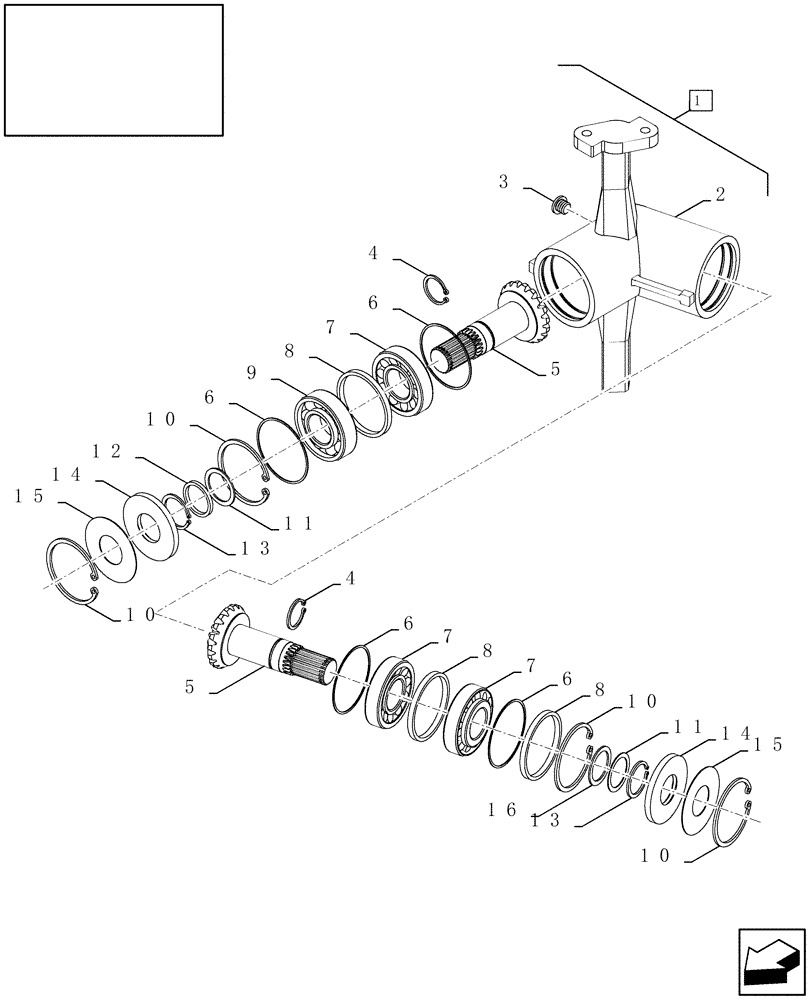

Запчасти Case IH AFX8010 (K.72.B.40[4]) - UNLOADING AUGER, GEARBOX - PRIOR TO PIN HAJ106401 K - Crop Processing

1

84320130

GEARBOX

Includes: 2 - 16

1шт.

87331084R

REMAN-GEARBOX

AFX8010 Prior To PIN HAJ106401, Reman For New P/N's 84320130 & 87331084

1шт.

87331084C

CORE-GEARBOX

Return Number

1шт.

2

84437089

HOUSING

Casting # 1.175.0302.00

1шт.

3

84437088

PLUG,3/8" Gas

1шт.

4

84025665

CIRCLIP

2шт.

5

84437076

BEVEL GEAR

2шт.

6

84437081

SHIM KIT

4шт.

7

86613758

BEARING ASSY,40mm ID x 90mm OD x 25.25mm W

3шт.

8

86623215

SPACER,81mm ID x 89.8mm OD x 7mm OAL

3шт.

9

80042543

BALL BEARING,40mm ID x 90mm OD x 23mm W

1шт.

10

370013

SNAP RING,M90 x 3mm Thk, Internal

4шт.

11

86623229

SHIM KIT

2шт.

12

84437080

RING

1шт.

13

440442

SNAP RING,M40 x 2.5mm Thk, External

40 x 2.5 mm

2шт.

14

86623230

RUBBER SEAL

2шт.

15

84437077

COVER

2шт.

16

84437091

SHIM

.020"

1шт.
