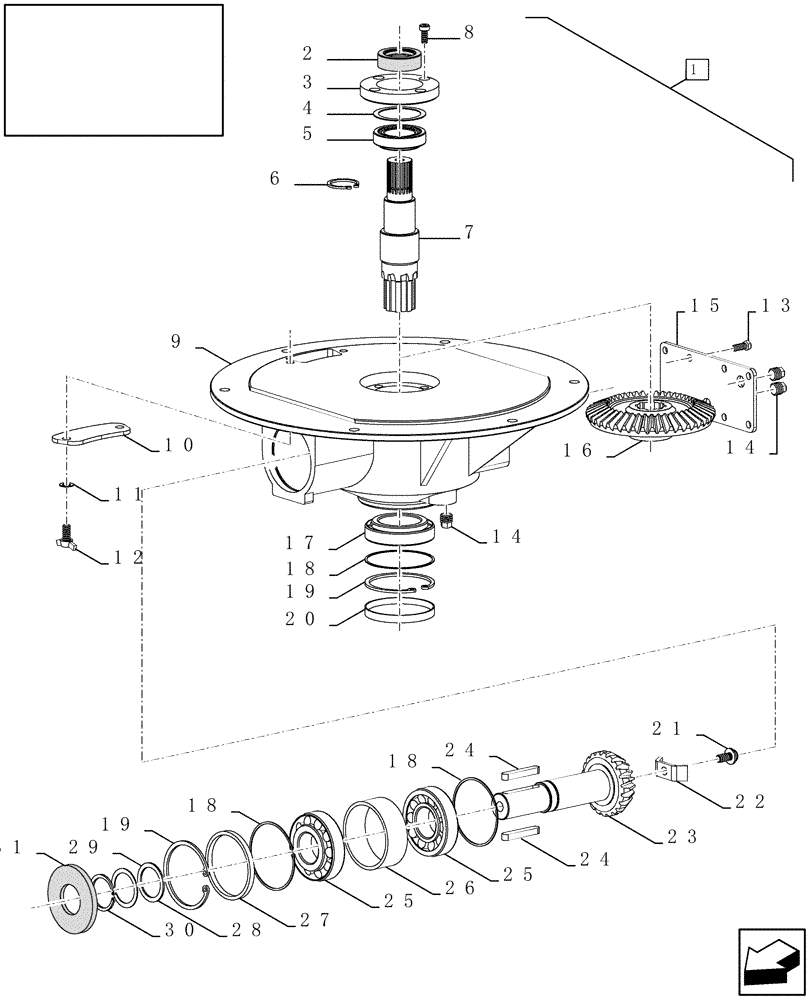

Запчасти Case IH AFX8010 (K.72.B.40[3]) - UNLOADING AUGER, GEARBOX K - Crop Processing

1

84320052

GEARBOX

1шт.

84320052R

REMAN-GEARBOX

AFX8010 PIN HAJ105105 THRU HAJ199999 (3/03 - 9/06)

1шт.

84320052C

CORE-GEARBOX

Return Number

1шт.

2

86623221

RUBBER SEAL,38.9mm ID x 60mm OD x 18.5mm Thk

1шт.

3

86623222

FLANGE

Cover

1шт.

4

86623218

SHIM KIT

1шт.

5

86626475

BEARING ASSY,40mm ID x 68mm OD x 19mm W

1шт.

6

370004

SNAP RING,M35 x 1.5mm Thk, External

1шт.

7

86623219

SHAFT

1шт.

8

86566099

HEX SOC SCREW,M8 x 16mm, Cl 12.9

4шт.

9

86623223

HOUSING

1шт.

10

86623226

COVER

1шт.

11

9511037

SEAL

SEALRING

2шт.

12

412049

SCREW,M10 x 16mm

2шт.

13

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

14

9837623

PLUG

Drain, Replaces 86557412

3шт.

15

86623224

COVER

1шт.

16

86623225

BEVEL PINION

1шт.

17

853116

TAPERED BEARING

1шт.

18

86623216

SHIM

3шт.

19

370013

SNAP RING,M90 x 3mm Thk, Internal

2шт.

20

86623227

COVER

1шт.

21

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

22

86623220

PLATE

1шт.

23

86623217

SHAFT

Pinion

1шт.

24

80170012

KEY

Replaced 170013

2шт.

25

86613758

BEARING ASSY,40mm ID x 90mm OD x 25.25mm W

2шт.

26

86623228

SPACER,81mm ID x 89.8mm OD x 33mm OAL

1шт.

27

86623215

SPACER,81mm ID x 89.8mm OD x 7mm OAL

1шт.

28

86623231

SHIM,17.2mm ID x 24.9mm OD x 0.3mm Thk

1шт.

29

86623229

SHIM KIT

Also Includes (1) Ref. # 28

1шт.

30

440442

SNAP RING,M40 x 2.5mm Thk, External

2.5 x 40 mm

1шт.

31

86623230

RUBBER SEAL

1шт.
