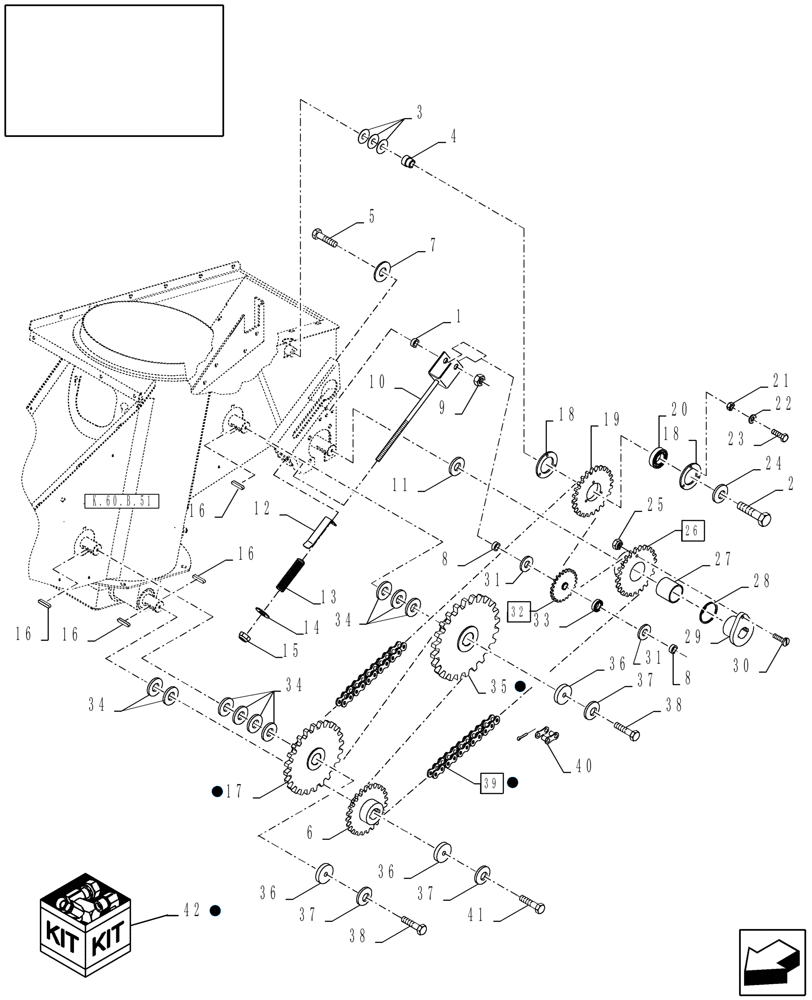

Запчасти Case IH AFX8010 (K.72.B.40[2]) - UNLOADING CHAIN DRIVE K - Crop Processing

1

86623083

SPACER

Washer

1шт.

2

614-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd

1шт.

3

80393062

WASHER

M17

3шт.

4

89515145

BUSHING

1шт.

5

120093

BOLT,M16 x 2.0 x 90.18mm, Cl 8.8

1шт.

6

84069770

SPROCKET

25T

1шт.

7

86519909

WASHER,17mm ID x 46mm OD x 5mm Thk

1шт.

8

86582836

SPACER

Spacer

2шт.

9

86000441

NUT,M16 x 2.0, Cl 8

1шт.

10

86588887

CLEVIS

1шт.

11

84073175

WASHER,35.1mm ID x 71.5mm OD x 5mm Thk

1шт.

12

86601493

INDICATOR

1шт.

13

337829

SPRING

Compression

1шт.

14

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.

15

80412126

LOCK NUT

CL 8, M12 x 1.75

1шт.

16

80170012

KEY

M10 x 8 x 50

4шт.

17

84069777

SPROCKET

38T

1шт.

17

87710883

SPROCKET

Sprocket, 47T; See Also: Ref.s 35 & 39

1шт.

Service Only: To Slow Down Drive For Rice Harvesting

1шт.

18

80310146

FLANGE

2шт.

19

86594534

SPROCKET

Idler, 25T

1шт.

20

80443898

BALL BEARING

1шт.

21

9706755

NUT,M6, Cl 8

3шт.

22

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

23

120100

BOLT,M6 x 20mm, Cl 8.8

3шт.

24

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

25

832-46408

NUT,M8 x 1.25, Cl 8

1шт.

26

84069795

SPROCKET

25T

1шт.

27

89819016

SLEEVE

1шт.

28

370004

SNAP RING,M35 x 1.5mm Thk, External

1шт.

29

84073176

SHEAR BOLT BUSHING

1шт.

30

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

1шт.

31

34821

WASHER,17.86mm ID x 28.57mm OD x 1.52mm Thk

2шт.

32

86627639

SPROCKET,15T

Idler, 15T

1шт.

33

66553

BALL BEARING,16.13mm ID x 40mm OD x 12.12mm W

1шт.

34

9800957

WASHER,35.81mm ID x 50.8mm OD x 1.52mm Thk

(M36)

11/ARшт.

35

84069677

SPROCKET,43T

43T

1шт.

35

87710883

SPROCKET

Sprocket, 47T; See Also: Ref.s 17 & 39

1шт.

Service Only: To Slow Down Drive For Rice Harvesting

1шт.

36

84073172

WASHER,13mm ID x 60mm OD x 12mm Thk

3шт.

37

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

3шт.

38

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

39

86998066

CHAIN,60H, 284 Links x 19.05mm = 5410.2mm

RC 60H, 3/4"-pitch, 284 Pitches

1шт.

39

87680581

CHAIN,60H, 288 Links x 19.05mm = 5486.4mm

Chain 60H, 3/4" pitch, 288 Pitches; See Also: Ref.s 17 & 35

1шт.

Service Only: To Slow Down Drive For Rice Harvesting

1шт.

40

86595264

LINK CHAIN

Connecting, RC 60 H, Cotter-pin-type

1шт.

41

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

1шт.

42

87753010

DIA KIT, HARVESTER

Kit, Grain Tank Auger Slow Down; Includes: Ref.s 17, 35, 39, & Instructions (Unload Rate is 2.7 bu/sec After Installation)

1шт.
