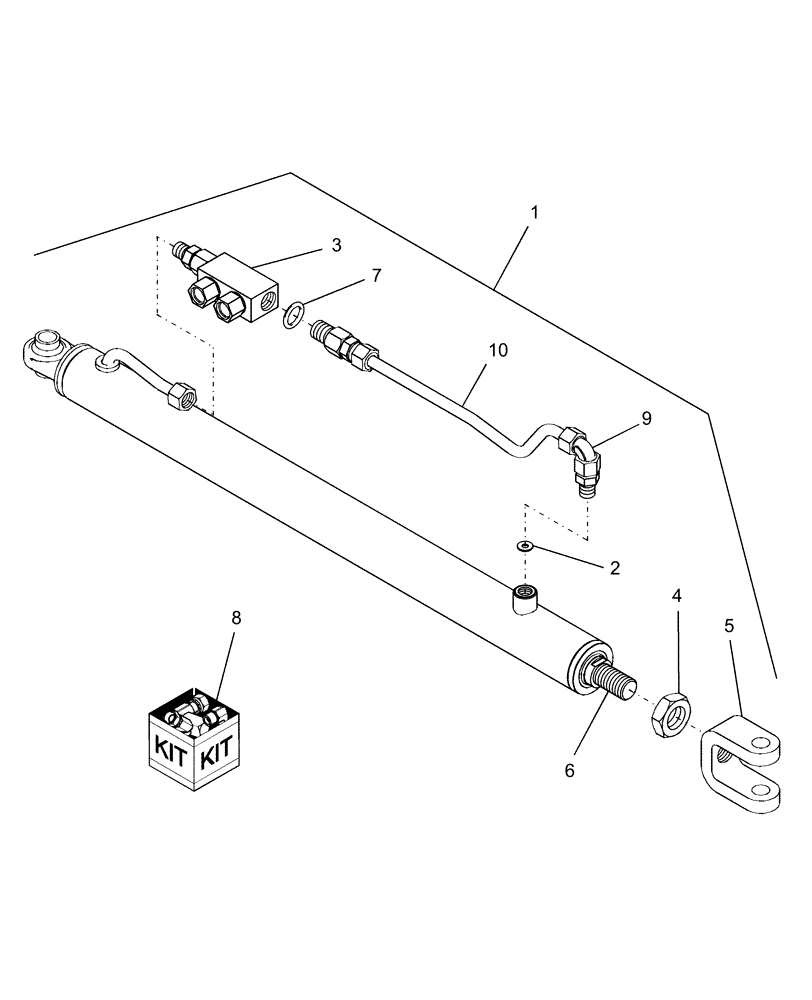

Запчасти Case IH AFX8010 (K.72.B.26[3]) - HYDRAULIC CYLINDER, UNLOADING AUGER, SWING K - Crop Processing

1

86586808

HYDRAULIC CYLINDER

Unloading Auger, Swing - 86548346 or 23284 Stamped on Cylinder

1шт.

1

84126279R

REMAN-HYD CYLINDER

AFX8010 AXIAL-FLOW COMBINE - PIN HAJ105105 THRU HAJ199999, Unloading Auger, Swing - 86548346 or 23284 Stamped on Cylinder (3/03-9/06), Reman For New PN 86586808

1шт.

1

84126279C

CORE-HYD CYLINDER

Return Number

1шт.

1

84461647

HYDRAULIC CYLINDER

Unloading Auger, Swing - 24215 Stamped on Cylinder

1шт.

84126279R

REMAN-HYD CYLINDER

AFX8010 PIN HAJ105105 THRU HAJ199999 (3/03-9/06) Reman for New P/N 84461647

1шт.

84126279C

CORE-HYD CYLINDER

Return Number

1шт.

2

87031319

ORIFICE

Flow Regulator

1шт.

3

87031320

CHECK VALVE

86586808 Cylinder Only

1шт.

3

84461693

VALVE, CHECK

84461647 Cylinder - Includes Ref. 7, 9 & 10

1шт.

4

84022122

THIN NUT,M24 x 2.0, Cl 05

1шт.

5

87031322

YOKE

1шт.

6

84462328

ROD,32mm OD

1шт.

7

722441

GASKET

1шт.

8

84989045

SEAL KIT

Cylinder Repair

1шт.

9

84462160

Elbow

1шт.

10

NSS

NOT SOLD SEPARAT

Tube and Elbow

1шт.
