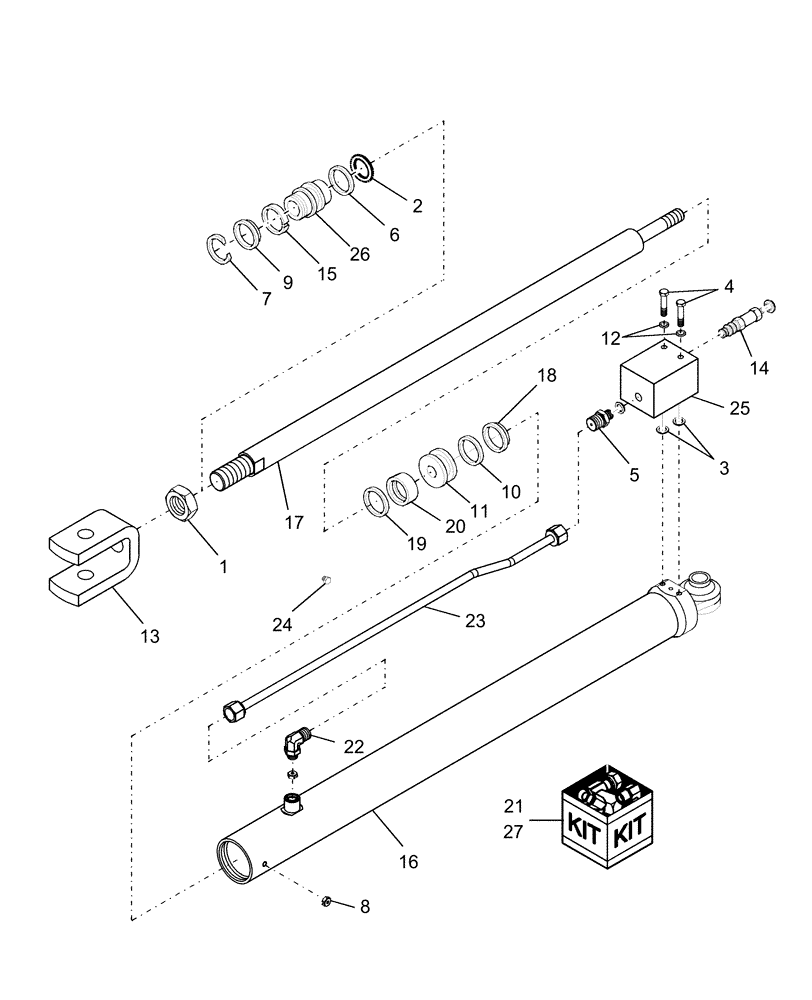

Запчасти Case IH AFX8010 (K.72.B.26[2]) - HYDRAULIC CYLINDER, UNLOADING AUGER, SWING K - Crop Processing

86586808

HYDRAULIC CYLINDER

86548346 or 23284 Stamped on Cylinder

1шт.

84126279R

REMAN-HYD CYLINDER

AFX8010 AXIAL-FLOW COMBINE - PIN HAJ105105 THRU HAJ199999, 86548346 or 23284 Stamped on Cylinder (3/03-9/06), Reman For New PN 86586808

1шт.

84126279C

CORE-HYD CYLINDER

Return Number

1шт.

1

84022122

THIN NUT,M24 x 2.0, Cl 05

1шт.

2

104258

O-RING,0.21" Thk x 1.6" ID, -326, Cl 5, 75 Duro

1шт.

3

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

4

86837942

BOLT,Hex, 1/4"-28 X 2 3/4", G8

2шт.

5

9626421

HYD CONNECTOR

1шт.

6

511297

SEAL,41.22mm ID x 50.8mm OD x 1.93mm Thk

1шт.

7

512016

SNAP RING

Int, 2.125"

1шт.

8

529034

SET SCREW

HS, Self-Locking, Cup Pt, 1/4"-20 x 1/4"

1шт.

9

529340

SEAL,31.75mm ID x 43.05mm OD x 4.76mm Thk

Rod Wiper

1шт.

10

771705

RING

Wear

1шт.

11

NSS

NOT SOLD SEPARAT

Piston

1шт.

12

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

2шт.

13

84064904

CLEVIS

1шт.

14

86580057

CHECK VALVE

1шт.

15

86513307

SEAL,31.75mm ID x 37.85mm OD x 6.35mm Thk

1.250" ID x 1.500" OD

1шт.

16

NSS

NOT SOLD SEPARAT

Cylinder

1шт.

17

NSS

NOT SOLD SEPARAT

Piston Rod

1шт.

18

86553483

SEAL

3 Piece, Piston

1шт.

19

86553484

PISTON RING

Piston

1шт.

20

NSS

NOT SOLD SEPARAT

Ring, Cushion

1шт.

21

84989045

SEAL KIT

1шт.

22

86579688

ELBOW,90 Degree, 11/16"-18 ORFS x M18 x 1.5 ORB

1шт.

23

86589755

TUBE,0.375" OD x 21.57", 1.23" L

1шт.

24

NSS

NOT SOLD SEPARAT

Orifice - Set Screw

1шт.

25

86607270

MANIFOLD VALVE

1шт.

26

9826325

CYLINDER HEAD

1шт.

27

86548352

SEAL KIT

1шт.
