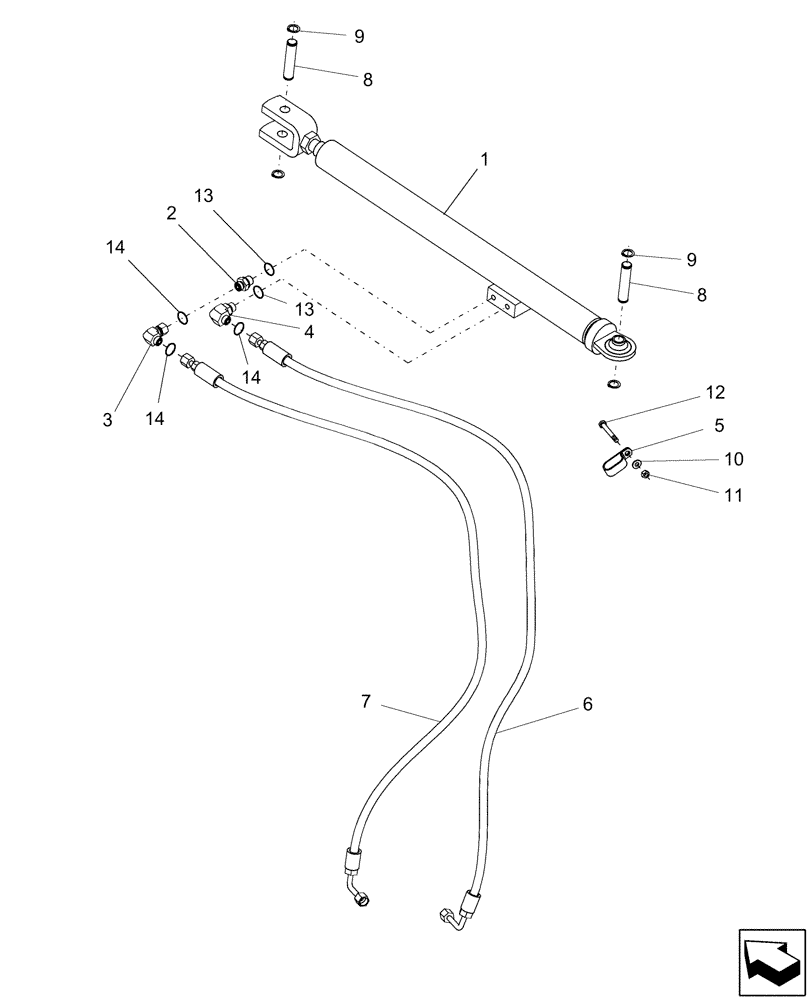

Запчасти Case IH AFX8010 (K.72.B.26[1]) - UNLOADER SWING CYLINDER AND LINES K - Crop Processing

1

86586808

HYDRAULIC CYLINDER

Stamped # 23284

1шт.

1

84126279R

REMAN-HYD CYLINDER

AFX8010 AXIAL-FLOW COMBINE - PIN HAJ105105 THRU HAJ199999, Stamped # 23284 (3/03-9/06), Reman For New PN 86586808

1шт.

1

84126279C

CORE-HYD CYLINDER

Return Number

1шт.

1

84461647

HYDRAULIC CYLINDER

Stamped # 24215

1шт.

84126279R

REMAN-HYD CYLINDER

AFX8010 PIN HAJ105105 THRU HAJ199999 (3/03-9/06) Reman for New P/N 84461647

1шт.

84126279C

CORE-HYD CYLINDER

Return Number

1шт.

2

86579673

HYD CONNECTOR,11/16" - 16 ORFS x M18 x 1.5 ORB

1шт.

3

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

1шт.

4

86579688

ELBOW,90 Degree, 11/16"-18 ORFS x M18 x 1.5 ORB

1шт.

5

87107812

CLAMP

1шт.

6

87106483

FLEXIBLE HOSE,10mm ID x 1780mm L

Unloading Tube Swing Cylinder

1шт.

7

87106482

FLEXIBLE HOSE

Unloading Tube Swing Cylinder

1шт.

8

84320612

PIN,19.05mm OD x 89mm L

2шт.

9

300627

SNAP RING,M19, External

4шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

11

9706690

NUT,M8 x 1.25, Cl 8

1шт.

12

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

1шт.

13

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

14

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.
