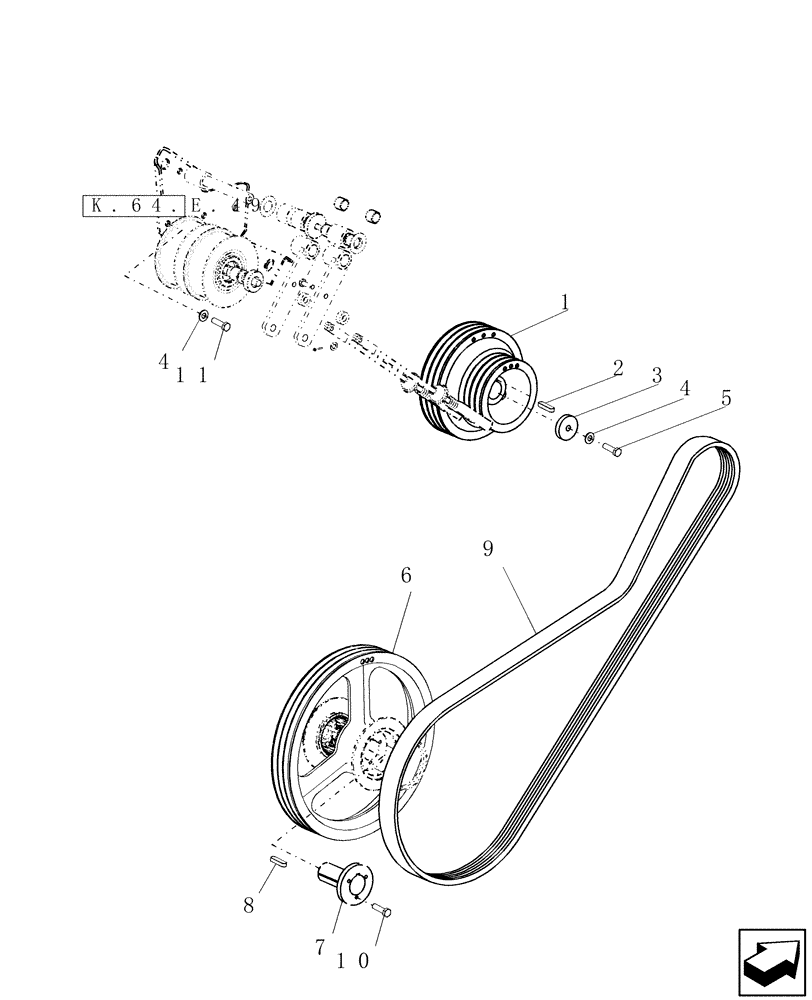

Запчасти Case IH AFX8010 (K.64.E.40[2]) - DRIVE, BEATER K - Crop Processing

1

86975937

PULLEY

Dual, Grooved, Years: -01-MAR-04

1шт.

1

87283335

PULLEY,255mm OD

Dual, Grooved, Start Year: 01-MAR-04

1шт.

2

170066

KEY,14mm W x 50mm OAL x 9mm Thk

1шт.

3

84073172

WASHER,13mm ID x 60mm OD x 12mm Thk

1шт.

4

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

6шт.

5

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

1шт.

6

87108839

PULLEY

, Years: -01-MAR-04

1шт.

6

87282664

PULLEY

, Start Year: 01-MAR-04

1шт.

7

87107341

BUSHING,34.9mm ID x 74.6mm Thk

, Years: -01-MAR-04

1шт.

7

87282665

BUSHING

includes a key with dimensions of 13 x 19 x 65, Start Year: 01-MAR-04

1шт.

8

87485

KEY,50.8mm OAL x 7.96mmThk

Sq, 5/16 x 2"

1шт.

9

86517680

V-BELT,3 Rib, 3045mm Nominal Length

3HB

1шт.

10

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

, Years: -01-MAR-04

3шт.

10

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

, Start Year: 01-MAR-04

3шт.

11

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

5шт.
