Запчасти Case IH AFX8010 (K.64.E.40[1]) - BEATER DRIVES K - Crop Processing

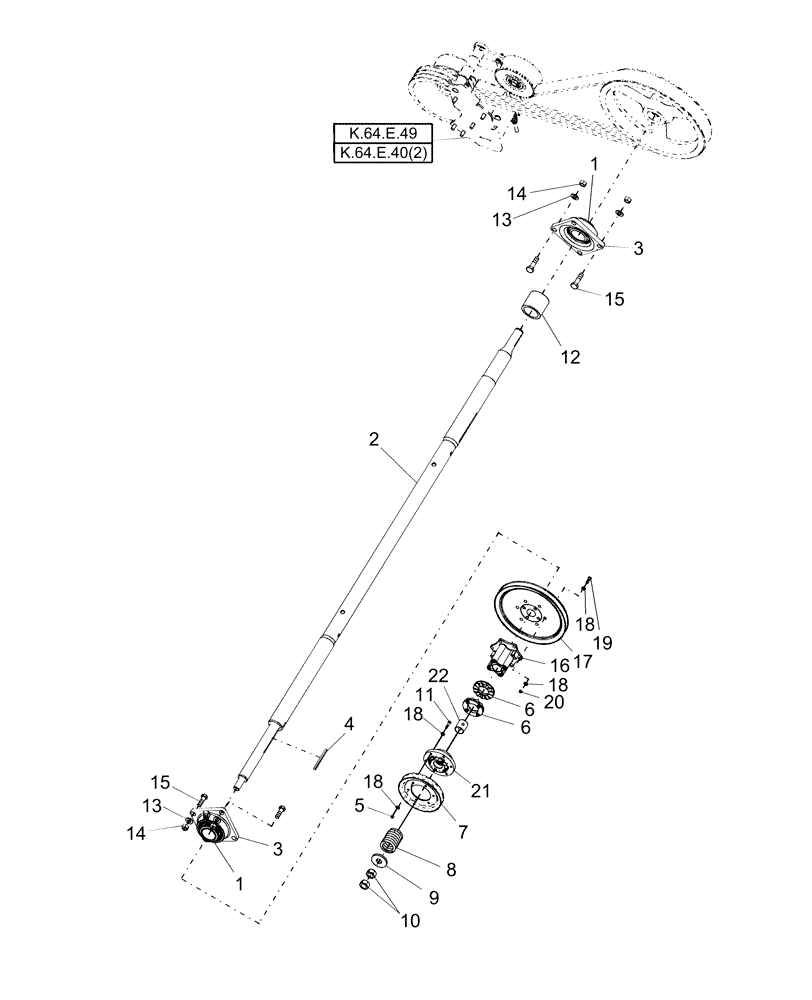

Схема запчастей Case IH AFX8010 - (K.64.E.40[1]) - BEATER DRIVES K - Crop Processing
13
18
17
3
18
20
6
8
14
14
5
18
9
6
2
1
11
4
22
15
10
1
19
16
18
3
21
15
12
k.64.e.40(2)
k.64.e.49
7
13

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Bearing

2шт.

2

87107720

SHAFT

, Years: -01-MAR-04

1шт.

2

87282886

SHAFT

, Start Year: 01-MAR-04

1шт.

3

87109088

BEARING ASSY

Includes Ref. 1

2шт.

Please See Figure Note

1шт.

4

86997578

KEY,10mm W x 94.2mm OAL x 8mm Thk

Retaining

1шт.

5

9706690

NUT,M8 x 1.25, Cl 8

7шт.

6

168370C2

RATCHET,Clutch Slip, 50.04mm ID x 94.49mm OD

2шт.

7

86999341

PULLEY,218mm OD

Drive, Tailing, 218 mm Dia.

1шт.

7

87283287

PULLEY

Drive, Tailing, 236.63 mm Dia., Years: 09-FEB-04-01-MAR-04

1шт.

8

420927

SPRING,110mm Free Length

1шт.

9

86997063

GROOVED BUSHING,50.04mm ID x 94.49mm OD x 20.83mm Thk

1шт.

10

9848973

NUT,M24 x 3.0, Cl 10

2шт.

11

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

7шт.

12

87109553

BUSHING

Spacer

1шт.

13

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

8шт.

14

392530

NUT,M16, Cl 10

8шт.

15

9845488

BOLT

Rd Hd, Short Neck, CL 10.9, M16 x 50

8шт.

16

87011488

HUB,40.02mm ID x 110.8mm Thk

1шт.

17

86999005

PULLEY

1шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

24шт.

19

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

6шт.

20

43362

NUT,M8 x 1.25, Cl 10

6шт.

21

87011496

HUB

1шт.

21

87282507

HUB

Replaces 87011496, Start Year: 09-FEB-04

1шт.

22

86997496

BUSHING,40.09mm ID x 44.09mm OD x 50mm L

1шт.

Выбрано товаров: 26
