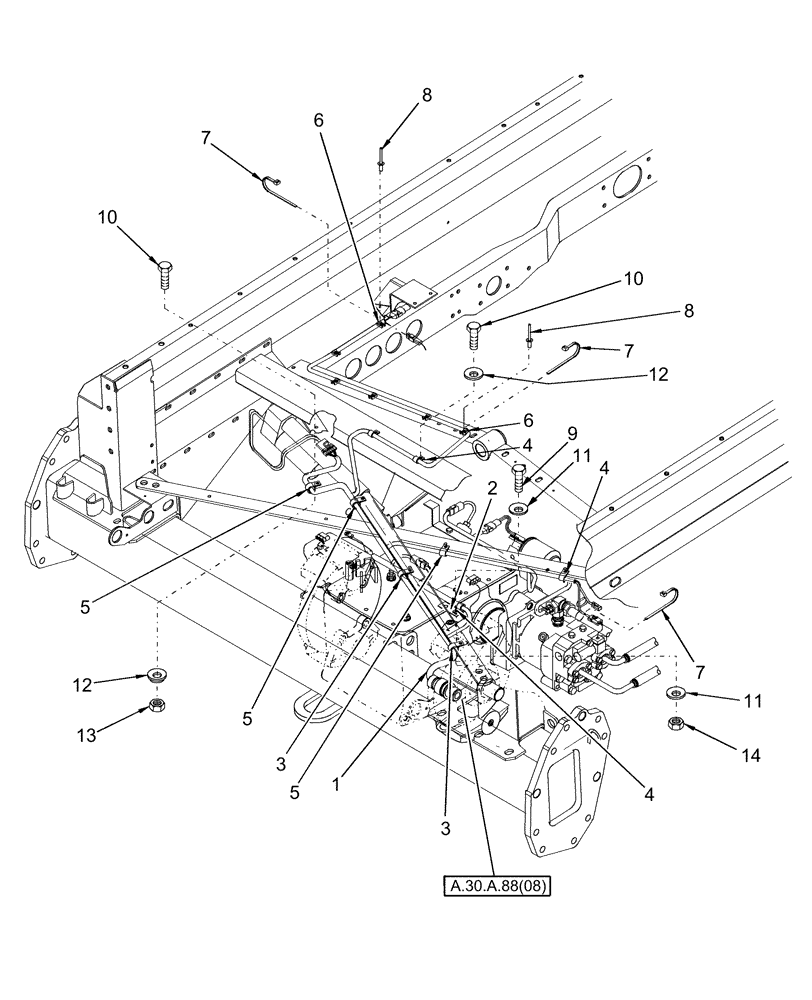

Запчасти Case IH AFX8010 (A.30.A.88[02]) - WIRE HARNESS, FRONT, LOWER FRAME A - Distribution Systems

1

87108020

WIRE HARNESS

Front, Lower Frame, Years: -09-FEB-04

1шт.

1

87283296

WIRE HARNESS

Front, Lower Frame, Start Year: 09-FEB-04

1шт.

2

84435328

BRACKET

1шт.

3

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

4

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

3шт.

5

619284

CLAMP,23.8mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

6

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Base Wire Tie

6шт.

7

86566989

CABLE TIE,208mm L

CABLE STRAP

7шт.

8

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

6шт.

9

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

10

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

8шт.

11

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

13

9706690

NUT,M8 x 1.25, Cl 8

6шт.

14

9706755

NUT,M6, Cl 8

1шт.
