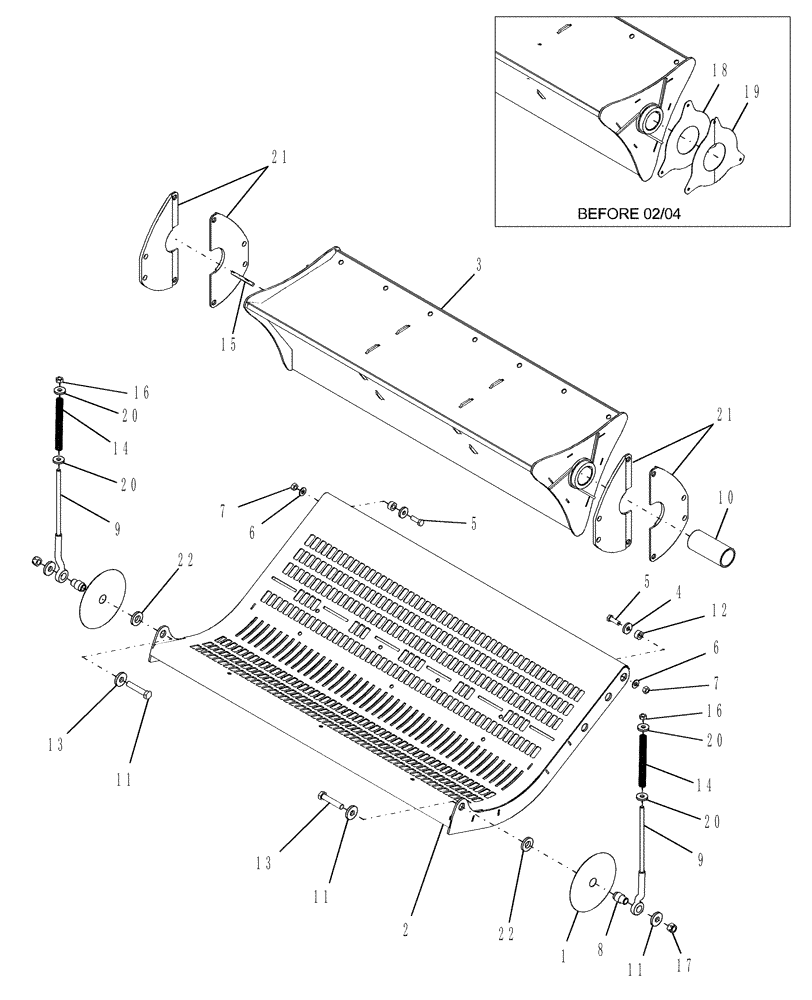

Запчасти Case IH AFX8010 (K.64.E) - BEATER, DISCHARGE K - Crop Processing

1

87105606

SHIELD

2шт.

2

87108192

PAN

, Years: -06-DEC-03

1шт.

2

87282893

PAN

, Start Year: 06-DEC-03

1шт.

3

87282088

BEATER

Was 87107313

1шт.

4

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

2шт.

5

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

2шт.

5

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

2шт.

6

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

7

9706685

NUT,M12 x 1.75, Cl 8

1шт.

8

86997586

BUSHING

2шт.

9

87591008

EYEBOLT

Eyebolt

2шт.

When Replacing Production Spring Or Eyebolt, Replace Both Springs & Both Eyebolts

1шт.

10

87109549

BUSHING

Spacer - 178.10 mm long

1шт.

10

87282091

BUSHING

Spacer - 183.60 mm long

1шт.

11

86592702

WASHER,17mm ID x 45mm OD x 6mm Thk

4шт.

12

699963

SPACER

2шт.

13

86577946

BOLT,Hex, M16 x 80mm x 10.9

2шт.

14

87656535

COMPRESSION SPRING

Spring, Compression

2шт.

When Replacing Production Spring Or Eyebolt, Replace Both Springs & Both Eyebolts

1шт.

15

86997578

KEY,10mm W x 94.2mm OAL x 8mm Thk

1шт.

16

412672

NUT,Hex, M12 x 1.75, Cl 10

2шт.

17

86512555

NUT,M16 x 2, Cl 10

2шт.

18

87282092

SEAL

, Years: -09-FEB-04

2шт.

19

87281986

PLATE

, Years: -09-FEB-04

2шт.

20

9838302

WASHER,13.5mm ID x 45mm OD x 6mm Thk

2шт.

21

87283248

SEAL

, Start Year: 09-FEB-04

4шт.

22

86511328

WASHER,25mm ID x 44mm OD x 4mm Thk

1шт.
