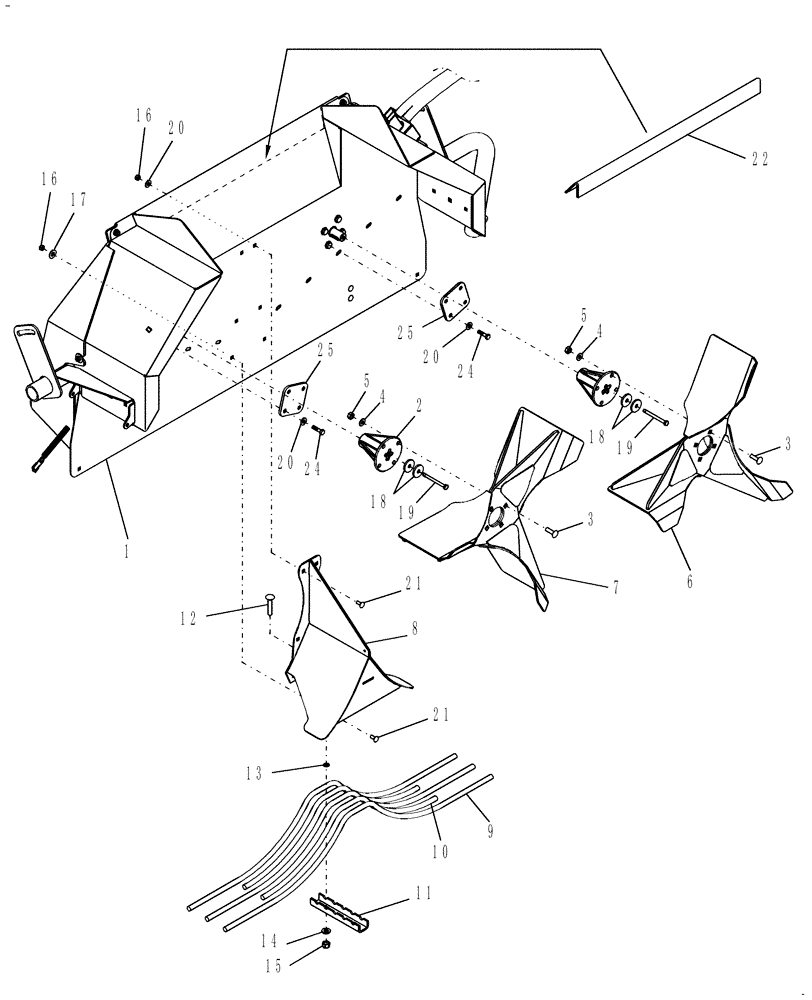

Запчасти Case IH AFX8010 (K.64.D.75[2]) - SPREADER, LOWER, W/FINGER BAR DISTRIBUTOR, PIN HAJ105247 AND AFTER K - Crop Processing

1

87284015

HOUSING

BPIN HAJ106401, Includes Ref. # 23 - Was 87283226

1шт.

For EU Only

1шт.

1

87510519

HOUSING

1шт.

For NA Only

1шт.

1

87510729

HOUSING

PIN HAJ106401 and after [MY2006], Shape shown on K.64.D.64

1шт.

2

87000192

HUB

BPIN HAJ106401

2шт.

2

87314540

HUB

PIN HAJ106401 and after [MY2006]

2шт.

3

412183

CARRIAGE BOLT,Short Sq Nk, M10 x 35mm, Cl 8.8

8шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

10шт.

5

100016

NUT,M10 x 1.5, Cl 8

8шт.

6

87284515

FAN BLADE

BLADE LH

1шт.

7

87284519

FAN BLADE

BLADE RH

1шт.

8

87283411

BAR

Support, Finger Bar

1шт.

9

87282590

FINGER BAR

Long

3шт.

10

87282592

FINGER BAR

Short

2шт.

11

87282620

FINGER

Clamp

1шт.

12

412097

CARRIAGE BOLT,Short Sq Nk, M12 x 1.75 x 60mm, Cl 8.8

2шт.

13

82004639

PUSH-ON NUT

Push On, 12 mm

2шт.

14

86588502

WASHER,13mm ID x 25mm OD x 3mm Thk

2шт.

15

100038

NUT,M12 x 1.75, Cl 8

2шт.

16

9706690

NUT,M8 x 1.25, Cl 8

6шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

18

264198

WASHER,9.9mm ID x 39.1mm OD x 4.8mm Thk

4шт.

19

87302583

LOCK BOLT,M8 x 1.25 x 95.45mm, Cl 10.9

2шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

21

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

6шт.

22

87314696

FLANGE

Welded Campaign Part, Final Shape as Shown on K.64.D.64

1шт.

23

84004739

DECAL

Stand Clear

3шт.

For EU Only

1шт.

23

86640441

WARNING DECAL

Stand Clear

3шт.

For NA Only

1шт.

24

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

8шт.

25

87531172

PLATE

2шт.
