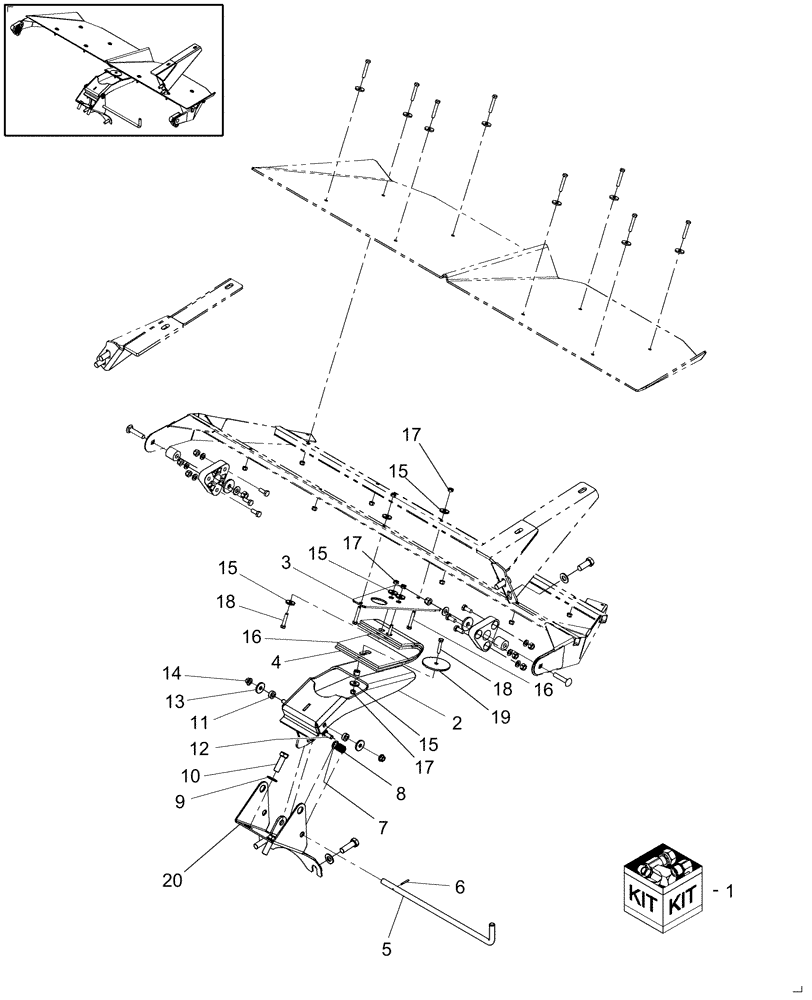

Запчасти Case IH AFX8010 (K.64.D.62[2]) - KIT, OSCILLATING CHAFFER PAN UPGRADE K - Crop Processing

1

84190587

SERVICE KIT

Kit, Oscillating Pan Upgrade

1шт.

2

84184117

SUPPORT ASSY.

Support

1шт.

3

84154907

PLATE ASSY.

Plate

1шт.

4

84154916

BELT

Belting

2шт.

5

84162351

PIN

Pin

1шт.

6

87913

LOCK PIN,3.17mm OD x 31.75mm L, Slotted

1шт.

7

87613216

WASHER,0.66" ID x 1" OD x 0.06" Thk

Washer

1шт.

8

86611329

SPRING

1шт.

9

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

10

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

4шт.

11

86997386

BUSHING,11.15mm ID x 22.23mm OD x 8mm L

2шт.

12

87682392

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 10.9

2шт.

13

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

2шт.

14

86050279

FLANGE NUT,M10 x 1.5, Cl 10

2шт.

15

140041

WASHER,M8 x 28mm OD x 3mm Thk

7шт.

16

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

17

9628098

NUT,M8 x 1.25, Cl 10

5шт.

18

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

3шт.

19

136443

WASHER,10.32mm ID x 57.15mm OD x 4.8mm Thk

1шт.

20

84185911

CHANNEL

Support

1шт.
