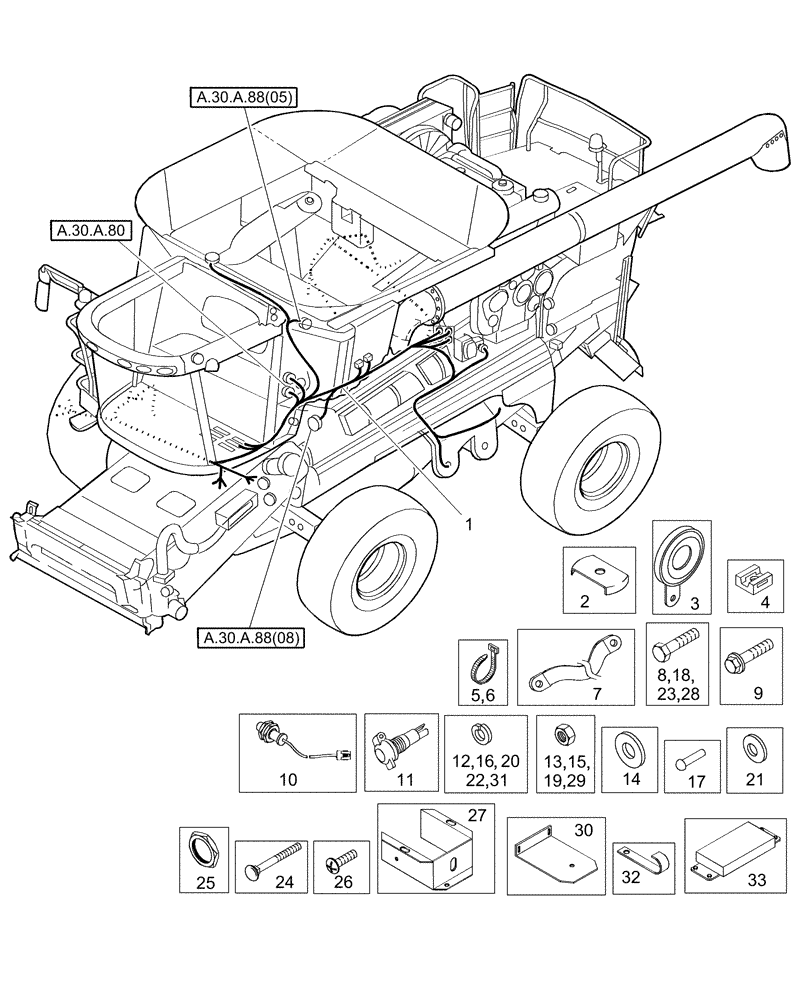

Запчасти Case IH AFX8010 (A.30.A.88[01]) - WIRE HARNESS, MAIN FRAME A - Distribution Systems

1

87106320

WIRE HARNESS

Main Frame, Years: -15-AUG-03

1шт.

1

87280757

WIRE HARNESS

Main Frame, Years: 15-AUG-03-09-FEB-04, Serial Range: -HAJ105316

1шт.

1a

87283332

WIRE HARNESS

Extension, Light - Use with 87280757 Only, Not Shown, Years: 15-AUG-03-09-FEB-04, Serial Range: -HAJ105316

1шт.

1

87283033

WIRE HARNESS

Main Frame, Years: 09-FEB-04-01-SEP-04, Start Serial: HAJ105317

1шт.

1

87284349

WIRE HARNESS

Main Frame, Years: 01-SEP-04-01-OCT-05

1шт.

1

87326649

WIRE HARNESS

Main Frame, Years: 01-OCT-05-01-JAN-07, Start Serial: HAJ106401

1шт.

1

87530064

WIRE HARNESS

Main Frame, Start Year: 01-JAN-07

1шт.

2

87108836

PLATE

Disc

1шт.

3

86617144

HORN

(Bosch)

1шт.

3

87714969

HORN

(Seger)

1шт.

4

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Base, Wire Tie

1шт.

5

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP 11"

1шт.

6

86566989

CABLE TIE,208mm L

CABLE STRAP 7.5"

1шт.

7

86534915

GROUND CABLE

1шт.

8

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

9

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

1шт.

10

84058861

SENSOR

Chopper Speed

1шт.

11

82002966

POWER SOCKET,M18 x 1

1шт.

12

9861349

LOCK WASHER,38.4mm ID x 47.9mm OD x 1.6mm Thk

1шт.

13

9861348

NUT,1-1/2"-18

1шт.

14

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

1шт.

15

9706690

NUT,M8 x 1.25, Cl 8

1шт.

16

636665

LOCK WASHER,43.18mm ID x 52.68mm OD x 1.57mm Thk

1шт.

17

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

18

412255

BOLT,Hex, M4 x 20mm, Cl 8.8

1шт.

19

385681

NUT,M4 x 0.7, Cl 8

1шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

22

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

1шт.

23

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

24

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

1шт.

25

86619907

NUT,1.6875"-18

4шт.

26

NSS

NOT SOLD SEPARAT

Screw, Pan Hd, #6 x 1/2"

2шт.

27

87036570

COVER

1шт.

28

336199

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

29

9706755

NUT,M6, Cl 8

3шт.

30

87036591

COVER

1шт.

31

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

32

134577

CLIP,J

3шт.

33

Rotor Loss Sensors - See Fig. K.40.C.95 for Components

1шт.
