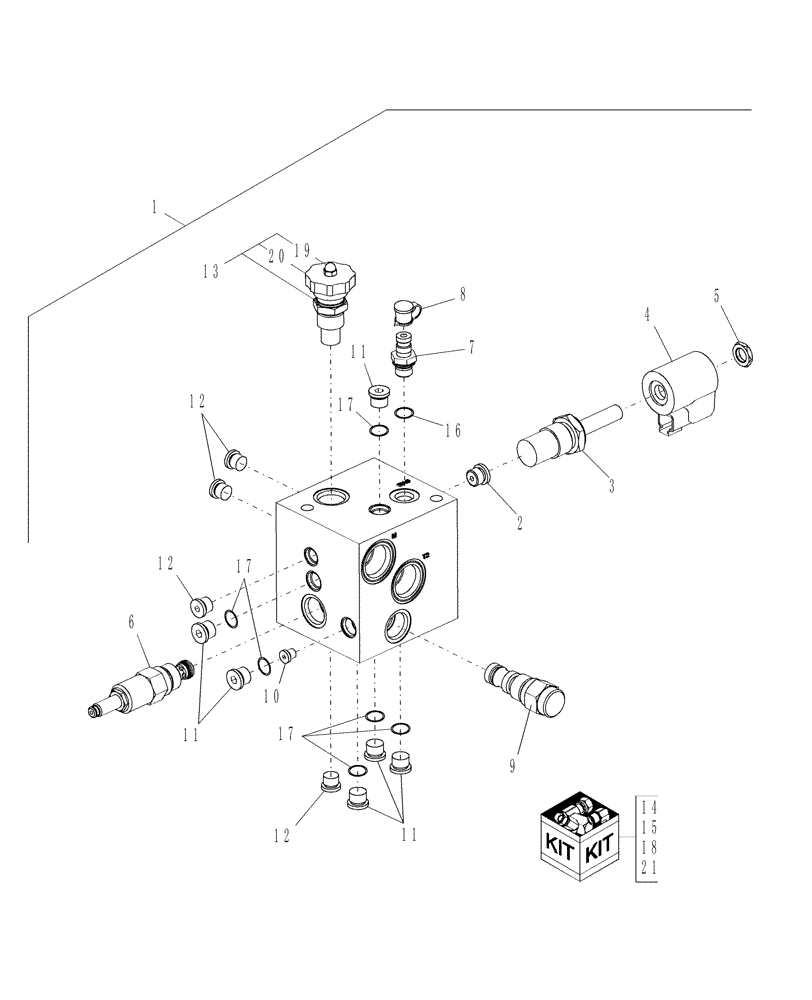

Запчасти Case IH AFX8010 (K.64.D.14[2]) - SPREADER CONTROL VALVE, COMPONENTS K - Crop Processing

1

86975667

HYDRAULIC VALVE

1шт.

2

87434021

PLUG

Plug, Orificed

1шт.

3

86514793

SOLENOID VALVE

See Also: Ref. 15

1шт.

4

87352779

SOLENOID

Was 86837739

1шт.

5

195683A1

JAM NUT,1/2"-20

1шт.

6

299075A1

VALVE, PRESSURE RELI

EF See Also: Ref. 14

1шт.

7

84320565

COUPLING,M14 x 1.5

Includes: Ref. 16

1шт.

8

H434163

DUST CAP

1шт.

9

87031239

HYDRAULIC VALVE

See Also: Ref. 18

1шт.

10

87026245

ORIFICE

1шт.

11

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 17

6шт.

12

87035062

PLUG,Hex, 1/2"-20 ORB

4шт.

13

87031238

CONTROL VALVE,7/8" - 14

Regulator, Flow; Includes: Ref. 19 & 20

1шт.

14

G110098

KIT

Services Ref. 6

1шт.

15

86514794

SEAL KIT

Services Ref. 3

1шт.

16

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6шт.

18

87024936

SEAL KIT

Services Ref. 9

1шт.

19

86505844

NUT,Acorn, #10-32

1шт.

20

87447534

KNOB

1шт.

21

86508168

SEAL KIT

Services Ref. 13

1шт.
