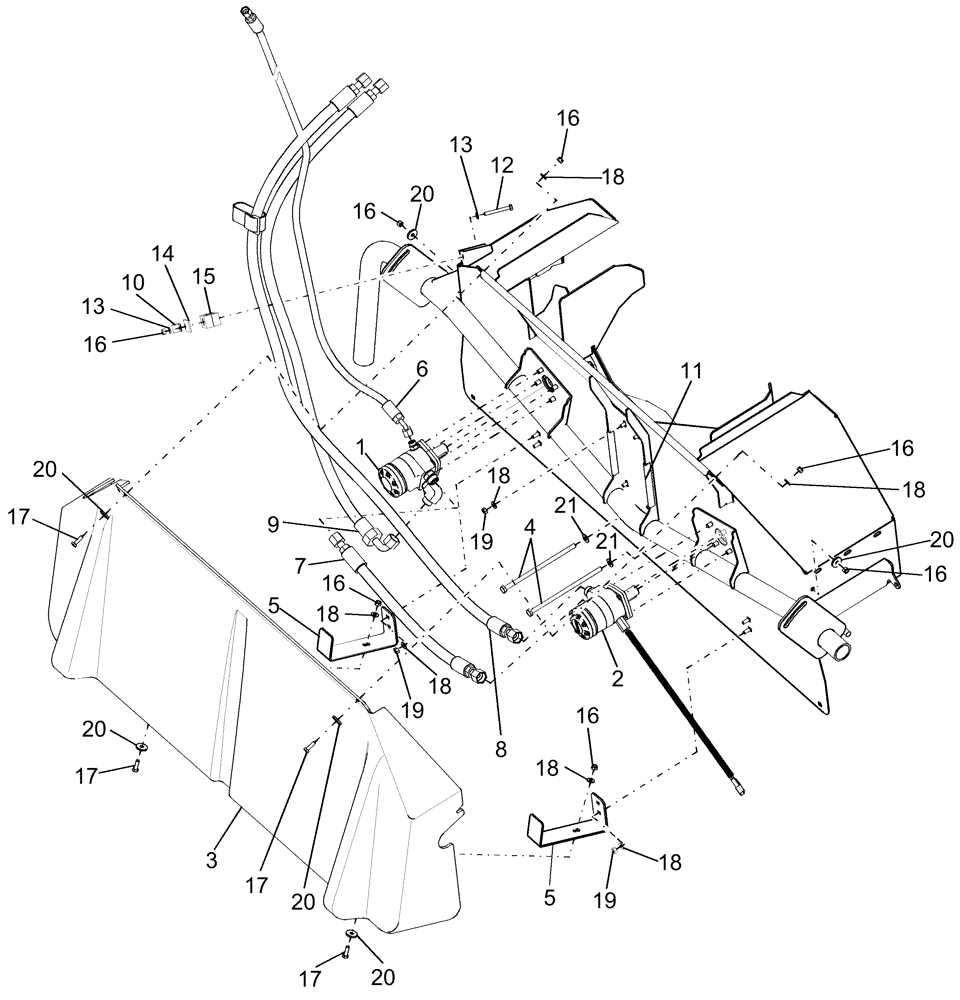

Запчасти Case IH AFX8010 (K.64.D[5]) - SPREADER - UPPER PARTS, PIN HAJ105247 AND AFTER K - Crop Processing

1

86996951

HYDRAULIC MOTOR

With Return

1шт.

1

86999889R

REMAN-HYD MOTOR

1шт.

1

86999889C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

86996952

HYDRAULIC MOTOR

With Sensor

1шт.

2

87519076R

REMAN-HYD MOTOR

1шт.

2

87519076C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

3

87510734

COVER

Was 87108653

1шт.

4

412005

BOLT,Hex, M10 x 1.5 x 220mm, Cl 8.8

2шт.

5

87108935

BRACKET

Cover

2шт.

6

87106225

FLEXIBLE HOSE

Motor, Drain

1шт.

7

87105926

FLEXIBLE HOSE

Motor, Jumper

1шт.

8

87105925

FLEXIBLE HOSE

Motor, Return

1шт.

9

87105924

FLEXIBLE HOSE,15.88mm ID x 1780mm L

Motor, Pressure

1шт.

10

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

11

87000945

PROTECTION STRIP

Trim

2шт.

12

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

1шт.

13

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

2шт.

14

87000230

PLATE

Hose Clamp

1шт.

15

87000924

CLAMP

1шт.

16

832-46408

NUT,M8 x 1.25, Cl 8

7шт.

17

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

16шт.

19

9706690

NUT,M8 x 1.25, Cl 8

8шт.

20

80140041

WASHER

M8

8шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.
