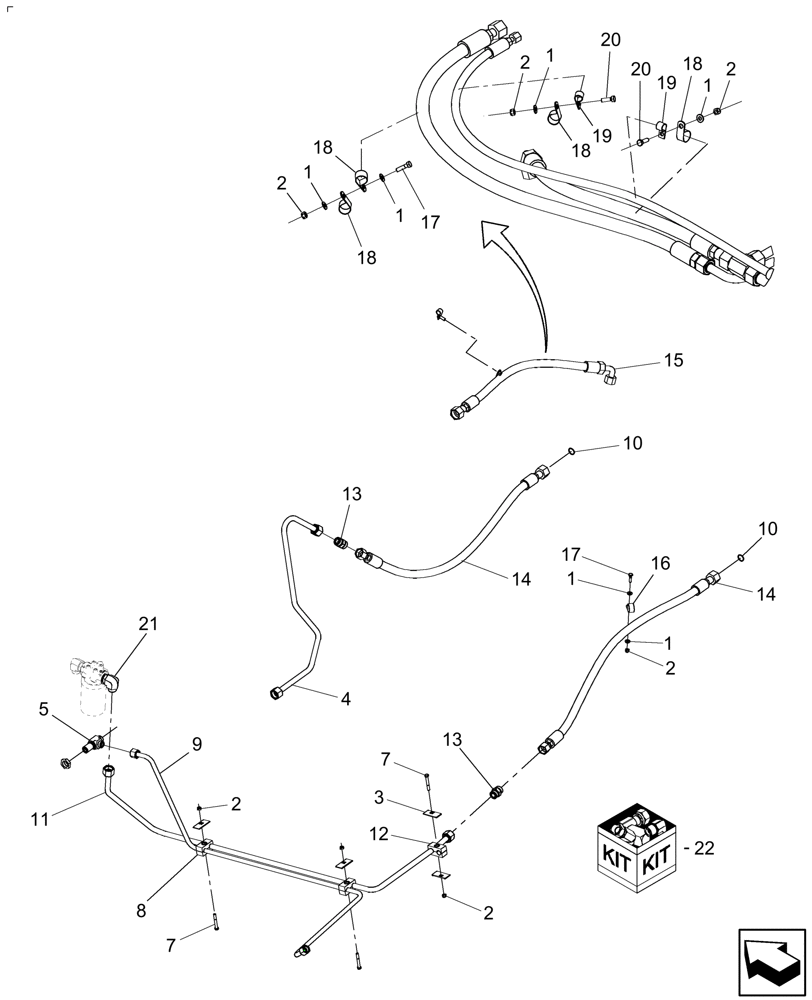

Запчасти Case IH AFX8010 (K.64.D[3A]) - HYDRAULICS, SPREADER AND ROTARY SCREEN DRIVE - SINGLE PLANE UPGRADE KIT K - Crop Processing

1

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

2

86629542

NUT,M8 x 1.25, Cl 8.8

10шт.

3

87000230

PLATE

7шт.

4

87563492

HYD TUBE,0.75" OD

Main Cooler Outlet

1шт.

5

86639081

TEE,1"-14 ORFS, Bulkhead

1шт.

6

87000142

CLAMP,2 Hoses

1шт.

7

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

4шт.

8

87000144

CLAMP

2шт.

9

87397349

HYD TUBE,16mm OD x 1064.4mm OAL

Drain - Bulkhead To Tee

1шт.

10

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

11

87563491

HYD TUBE,0.75" OD

Main Cooler Inlet

1шт.

12

87000140

CLAMP,Tube, 19.05mm

1шт.

13

84100407

UNION,1-3/16"-12 ORFS

2шт.

14

87397348

HOSE ASSY.

Main Cooler

2шт.

15

87105715

FLEXIBLE HOSE

Aux Cooler Return

1шт.

16

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

17

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

18

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

19

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

20

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

21

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

1шт.

22

84181355

SERVICE KIT

Kit, Single Plane Upgrade, See Fig. B.10[3]; Includes: Ref.s 1 Thru 21 Plus Those Components Found On Other Figures, As Indicated

1шт.
