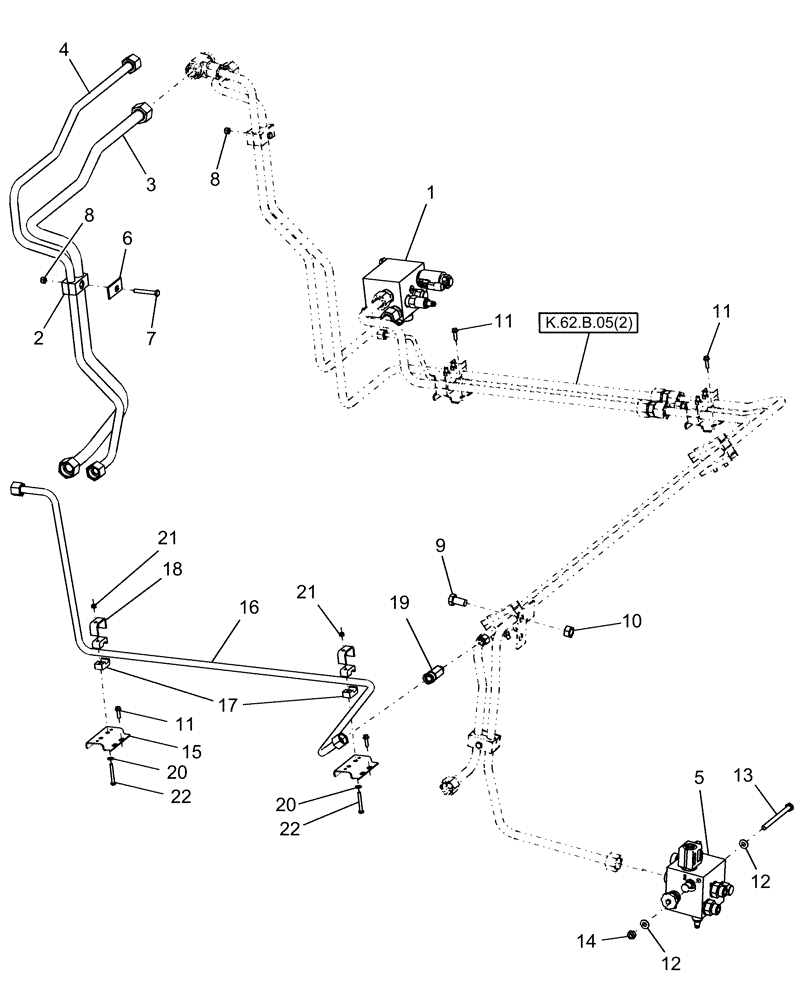

Запчасти Case IH AFX8010 (K.64.D[3]) - HYDRAULICS, SPREADER AND ROTARY SCREEN DRIVE K - Crop Processing

1

87107189

HYDRAULIC VALVE

Cleaning Fan

1шт.

2

87000146

CLAMP

1шт.

3

87000875

HYD TUBE,1" OD

Aux Cooler Return

1шт.

4

87105710

HYD TUBE,0.75" OD

Hydro Cooler Outlet

1шт.

5

86975667

HYDRAULIC VALVE

Spreader

1шт.

6

87000230

PLATE

Clamp, Hose

1шт.

7

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

1шт.

8

832-46408

NUT,M8 x 1.25, Cl 8

2шт.

9

43167

BOLT,Hex, M16 x 30mm, Cl 8.8, Full Thd

2шт.

10

825-1416

NUT,M16, Cl 8

2шт.

11

87010469

SELF-TAP SCREW,Hex, M6.3 x 25mm

8шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

13

86508575

BOLT,Hex, M10 x 130mm, Cl 8.8

2шт.

14

100016

NUT,M10 x 1.5, Cl 8

2шт.

15

87109755

BRACKET

Tube Clamp

2шт.

16

87109924

HYD TUBE,0.625" OD

Drain - Bulkhead to Tee

1шт.

17

433007

CLAMP

4шт.

18

433100

SUPPORT

2шт.

19

87109744

FITTING

Reducer Tee - LP Drain

1шт.

20

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

21

353308

NUT,M6 x 1.0, Cl 8

2шт.

22

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.
