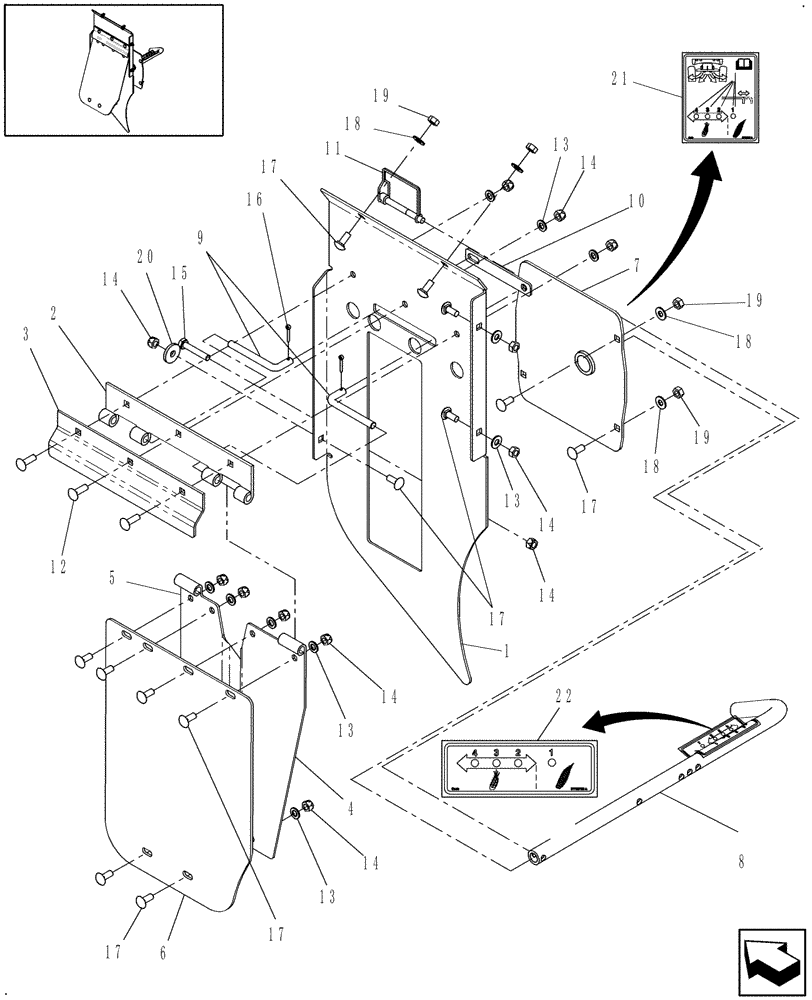

Запчасти Case IH AFX8010 (K.64.C.57) - DEFLECTOR, RH CHOPPER DISCHARGE K - Crop Processing

1

87726081

BULKHEAD

1шт.

2

87325654

HINGE

1шт.

3

87726083

WEAR PLATE

Wear

1шт.

4

87726082

HINGE

Plate, RH

1шт.

5

87726087

HINGE

Plate, LH

1шт.

6

87732857

PLATE

Deflector

1шт.

7

87728709

SERVICE KIT

Mounting Plate; Includes: Ref. 21

1шт.

8

87728710

SERVICE KIT

Handle; Includes: Ref. 22

1шт.

9

87325655

PIN,9.53mm OD x 91.8mm OAL

2шт.

10

87726088

STRAP

Retaining

1шт.

11

647695

PIN,7.94mm OD

1шт.

12

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

3шт.

13

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

9шт.

14

86629542

NUT,M8 x 1.25, Cl 8.8

11шт.

15

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

16

130003

COTTER PIN,3mm OD x 30mm OAL

2шт.

17

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

13шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

19

9706690

NUT,M8 x 1.25, Cl 8

6шт.

20

140041

WASHER,M8 x 28mm OD x 3mm Thk

1шт.

21

87728707

DECAL

Deflector

1шт.

22

87728708

DECAL

Handle

1шт.
