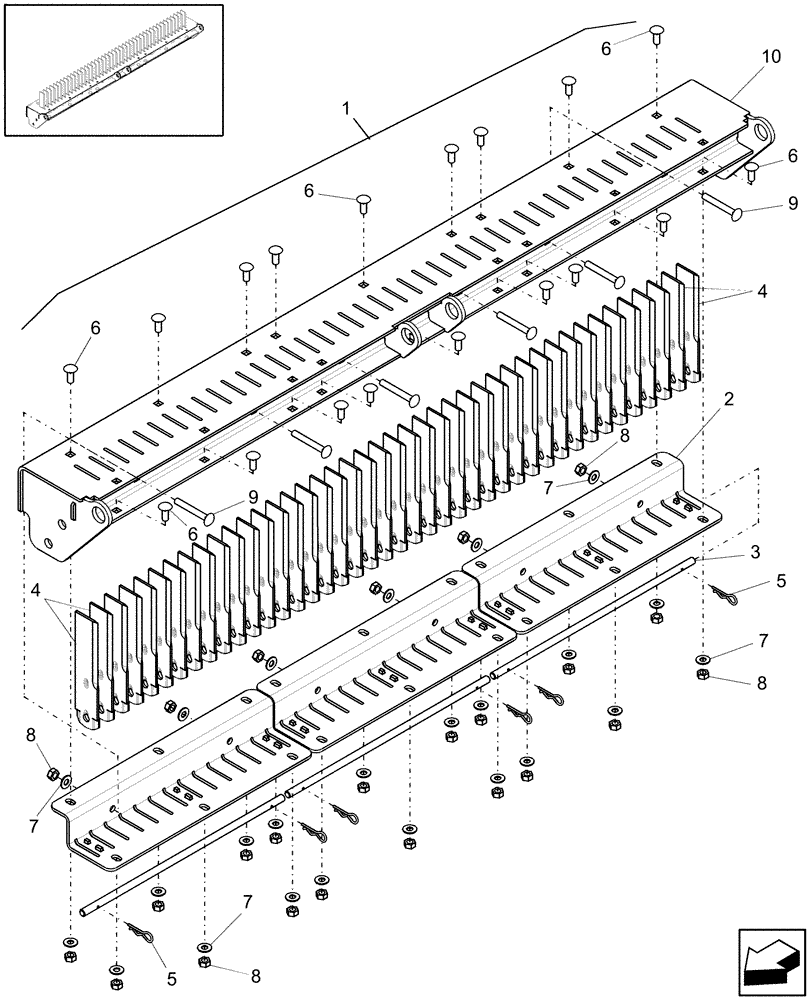

Запчасти Case IH AFX8010 (K.64.C.56) - FRAME, KNIFE, PERPENDICULAR - EU ONLY K - Crop Processing

1

87697856

BAR ASSY.

1шт.

2

87584441

MOUNTING PLATE

3шт.

3

87584442

ROD

3шт.

4

1322233C2

KNIFE,168.5mm L x 40mm W x 3mm Thk

42шт.

5

1322252C1

HAIR PIN COTTER

6шт.

6

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

18шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

24шт.

8

9706690

NUT,M8 x 1.25, Cl 8

24шт.

9

86512445

CARRIAGE BOLT,Sht Nk, M8 x 60mm, Cl 8.8

6шт.

10

87697855

BAR ASSY.

1шт.
