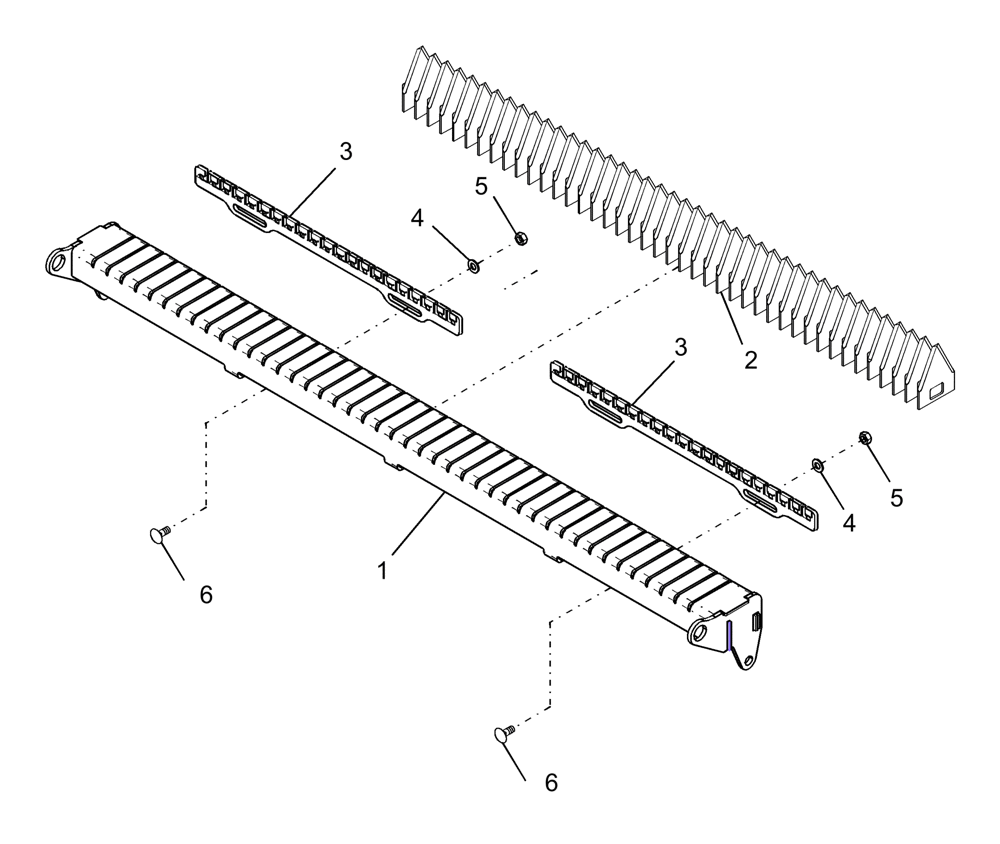

Запчасти Case IH AFX8010 (K.64.C.55) - FRAME, KNIFE K - Crop Processing

1

87109341

FRAME

Fixed Knife

1шт.

2

87106692

KNIFE SECTION

Coarse Cut

21шт.

2

87106692

KNIFE SECTION

Fine Cut

42шт.

3

87109351

LOCKING PLATE

2шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

5

100016

NUT,M10 x 1.5, Cl 8

4шт.

6

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.
