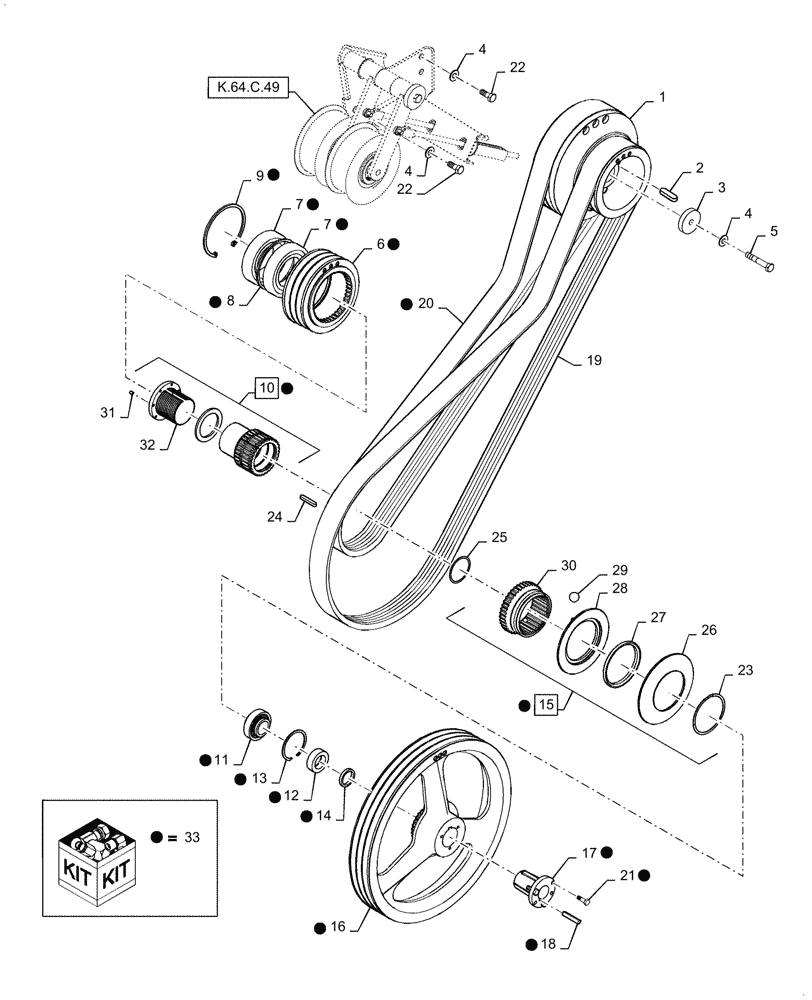

Запчасти Case IH AFX8010 (K.64.C.40[2]) - STRAWCHOPPER DRIVE - PULLEYS AND BELTS K - Crop Processing

1

87281239

PULLEY,275mm OD

Dual, Grooved

1шт.

3000 RPM

1шт.

1

87283335

PULLEY,255mm OD

Dual, Grooved

1шт.

2800 RPM

1шт.

2

170066

KEY,14mm W x 50mm OAL x 9mm Thk

1шт.

3

84073172

WASHER,13mm ID x 60mm OD x 12mm Thk

1шт.

4

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

6шт.

5

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

1шт.

6

86976201

PULLEY

1шт.

7

605899

ROLLER BEARING,75mm ID x 130mm OD x 25mm W

2шт.

8

86976202

SPACER

1шт.

9

370014

SNAP RING,M130, Internal

1шт.

10

87332634

HUB

Concentra

1шт.

11

86976370

BALL BEARING,34.92mm ID x 72mm OD x 17mm W

1шт.

12

47067

RETAINER COLLAR,34.92mm ID x 56.33mm OD x 17.46mm Thk

1шт.

13

131692

SNAP RING,2.8" ID x 3" OD x 0.095" Thk, External

3" Free OD

1шт.

14

87282629

SPACER

1шт.

15

47581446

COLLAR

Shifter

1шт.

16

87282563

PULLEY,467.7mm OD

1шт.

16

87325137

PLATE

1шт.

16

87283587

GEAR,36T

1шт.

16

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

1шт.

17

87107341

BUSHING,34.9mm ID x 74.6mm Thk

1шт.

18

87485

KEY,50.8mm OAL x 7.96mmThk

Square, 5/16" x 2"

1шт.

19

86517680

V-BELT,3 Rib, 3045mm Nominal Length

3 HB

1шт.

20

86976208

V-BELT,3 Rib, 2720mm Nominal Length

1шт.

3000 RPM

1шт.

Europe Only

1шт.

20

87283315

V-BELT,16.00 mm W x 2690.00 mm L, 3 Ribs

3 HB

1шт.

2800 RPM

1шт.

21

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

3шт.

22

814-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

5шт.

23

86976550

RING

Retaining, 100.5 mm Free ID

1шт.

24

170010

KEY

Square, 8 x 7 x 50 mm

1шт.

25

87337454

RETAINER

Series RR, #256

1шт.

26

86976468

WASHER

Washer, 105.2 ID x 180 OD x 4.08 [mm]

1шт.

27

86976207

SPRING

Wave Type, SS

1шт.

28

86976206

RING

Ball Retainer

1шт.

29

87038215

BALL,10mm OD, Gr 200

10 mm, GR 200, SS

3шт.

30

86976205

COLLAR

Shifter

1шт.

31

87019103

SET SCREW,M6 x 10mm

HSH, M6 x 1 x 10

7шт.

32

87510844

HUB ASSY.

Assembly

1шт.

33

87527512

REPAIR KIT

Pulley

1шт.
