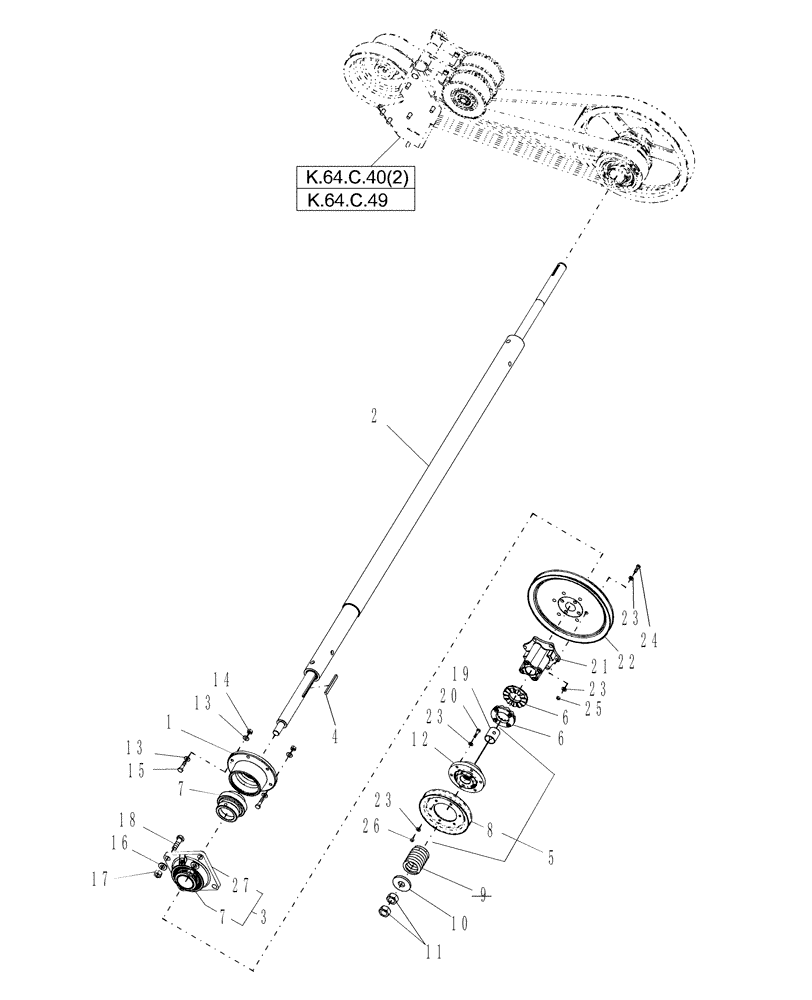

Запчасти Case IH AFX8010 (K.64.C.40[1]) - STRAWCHOPPER DRIVE K - Crop Processing

1

87109089

BEARING ASSY

Includes Ref. 7

1шт.

2

87282228

SHAFT

1шт.

3

87109088

BEARING ASSY

Includes Ref. 7 & 27

1шт.

Please See Figure Note

1шт.

4

86997578

KEY,10mm W x 94.2mm OAL x 8mm Thk

Retaining

1шт.

5

87011491

PULLEY

1шт.

6

168370C2

RATCHET,Clutch Slip, 50.04mm ID x 94.49mm OD

2шт.

7

NSS

NOT SOLD SEPARAT

Bearing

2шт.

8

86999341

PULLEY,218mm OD

Driver, Tailings

1шт.

9

420927

SPRING,110mm Free Length

1шт.

10

86997063

GROOVED BUSHING,50.04mm ID x 94.49mm OD x 20.83mm Thk

1шт.

11

9848973

NUT,M24 x 3.0, Cl 10

2шт.

12

87011496

HUB

1шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

14

100016

NUT,M10 x 1.5, Cl 8

3шт.

15

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

3шт.

16

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

8шт.

17

392530

NUT,M16, Cl 10

4шт.

18

9845488

BOLT

Carriage, Short Neck, CL 10.9, M16 x 2 x 50

4шт.

19

86997496

BUSHING,40.09mm ID x 44.09mm OD x 50mm L

1шт.

20

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

6шт.

21

87011488

HUB,40.02mm ID x 110.8mm Thk

1шт.

22

86999005

PULLEY

1шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

24шт.

24

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

6шт.

25

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

26

825-1408

NUT,M8, Cl 8

6шт.

27

NSS

NOT SOLD SEPARAT

Housing, Bearing - Included with Ref. 3

1шт.
