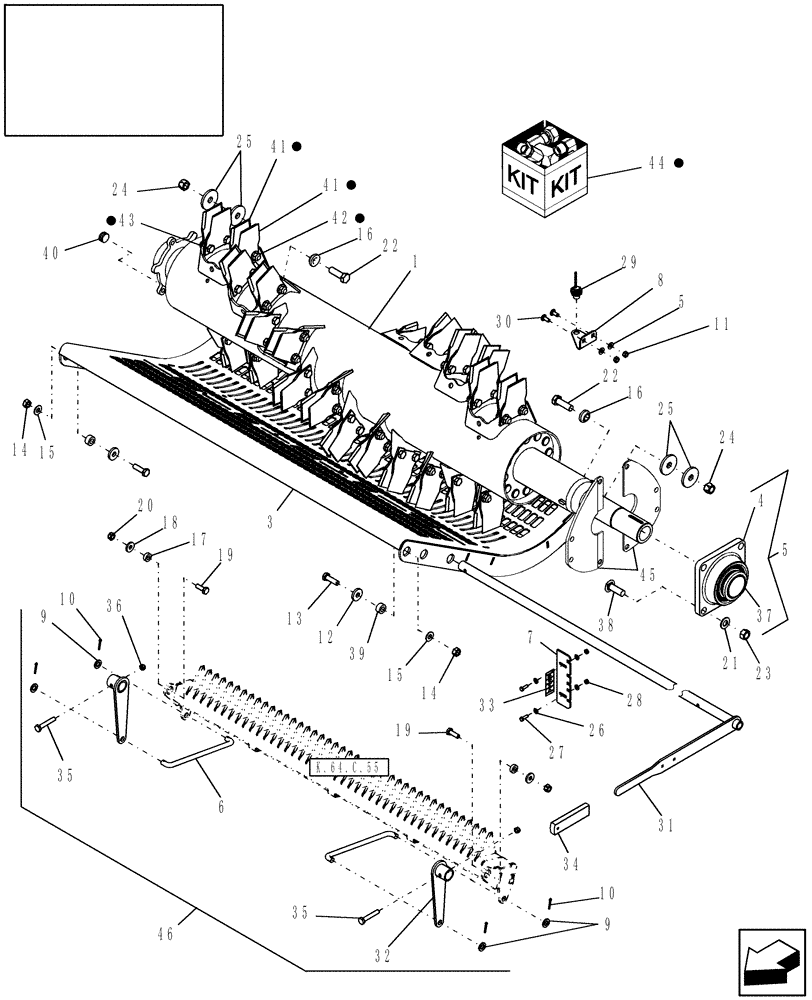

Запчасти Case IH AFX8010 (K.64.C[1]) - STRAW CHOPPER, STANDARD AND FINE K - Crop Processing

1

87107128

ROTOR

STD Cut, with Blades, 1300 mm [51-1/4"] Tube

1шт.

Prior to PIN HAJ103201EU & HAJ105207NA

1шт.

1

87107129

ROTOR

FINE Cut, with Blades, 1300 mm [51-1/4"] Tube

1шт.

Prior to PIN HAJ103201EU & HAJ105207NA

1шт.

1

87282773

ROTOR

STD Cut, with Blades, 1276 mm [50-1/4"] Tube

1шт.

HAJ103201EU & HAJ105207NA to HAJ106401EU & NA

1шт.

1

87282772

ROTOR

FINE Cut, with Blades, 1276 mm [50-1/4"] Tube

1шт.

HAJ103201EU & HAJ105207NA to HAJ106401EU & NA

1шт.

1

87340544

STRAW CHOPPER

STD Cut, with Blades, See Figure Note

1шт.

PIN HAJ106401 and after

1шт.

1

87340548

STRAW CHOPPER

FINE Cut, with Blades, See Figure Note

1шт.

PIN HAJ106401 and after

1шт.

1

87340540

ROTOR

No Blades, Used With STD and FINE, See Figure Note

1шт.

PIN HAJ106401 and after

1шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

3

87108192

PAN

1шт.

Prior to PIN HAJ103201EU & HAJ105207NA

1шт.

3

87282893

PAN

1шт.

PIN HAJ103201EU & HAJ105207NA and after

1шт.

4

NSS

NOT SOLD SEPARAT

Housing, Bearing

1шт.

5

87109088

BEARING ASSY

Includes: Bearing and Housing Ref. # 4 & 37

1шт.

Please See Figure Note

1шт.

6

87000450

LINK

, Years: -09-FEB-04

2шт.

6

87282824

LINK

, Start Year: 09-FEB-04

2шт.

7

87109324

PLATE

1шт.

8

87107532

BRACKET

1шт.

9

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

10

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

4шт.

11

9706690

NUT,M8 x 1.25, Cl 8

2шт.

12

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

2шт.

13

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

2шт.

14

9706685

NUT,M12 x 1.75, Cl 8

2шт.

15

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

16

87000251

BUSHING,17mm ID x 34mm OD x 12mm L

2шт.

17

86997386

BUSHING,11.15mm ID x 22.23mm OD x 8mm L

2шт.

18

86592700

WASHER,10.5mm ID x 28mm OD x 4mm Thk

2шт.

19

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

8шт.

20

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

21

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

8шт.

22

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

6шт.

23

392530

NUT,M16, Cl 10

4шт.

24

86512555

NUT,M16 x 2, Cl 10

2шт.

25

84007183

WASHER,16.5mm ID x 58mm OD x 6mm Thk

4шт.

26

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

27

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

28

9706755

NUT,M6, Cl 8

2шт.

29

84058861

SENSOR

Chopper Speed

1шт.

30

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

31

87281621

HANDLE

1шт.

32

87108765

ARM

2шт.

33

87280049

DECAL

Height of Knives

1шт.

34

357545

HANDLE GRIP

1шт.

35

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

36

832-46408

NUT,M8 x 1.25, Cl 8

2шт.

37

NSS

NOT SOLD SEPARAT

Bearing, Included with Ref. 5

1шт.

38

9845488

BOLT

Rd Hd, Short Neck, CL 10.9, M16 x50

4шт.

39

699963

SPACER

2шт.

40

87109745

PLUG

Plastic - 25.4 mm Dia.

24шт.

40

87284568

PLUG

Plastic - 22.2 mm Dia.

24шт.

41

86999627

BLADE

Cutting

28шт.

STD Cut

1шт.

41

86999627

BLADE

Cutting

56шт.

FINE Cut

1шт.

42

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

56шт.

STD Cut

1шт.

43

86512497

FLANGE NUT,M12 x 1.75, Cl 10

56шт.

44

87280980

SERVICE KIT

Blades (2) & Bolts (4) & Nuts (4)

1шт.

45

87282149

SEAL

Seal, Round, Three Bolt, I.D. Protruding Lip, Plastic, Years: -06-DEC-03

2шт.

45

87282577

SEAL

Round, Three Bolt, Flat, Plastic, Requires Steel Plate, Years: 06-DEC-03-09-FEB-04

2шт.

45

87281986

PLATE

Steel, Used With Flat Round Seal, Years: 06-DEC-03-09-FEB-04

2шт.

45

87282748

SEAL

Shown In Graphics, Start Year: 09-FEB-04

4шт.

46

87281465

STRAW CHOPPER

Assembly, Standard, Less Ref 3, W/Fig K.64.C.55

1шт.
