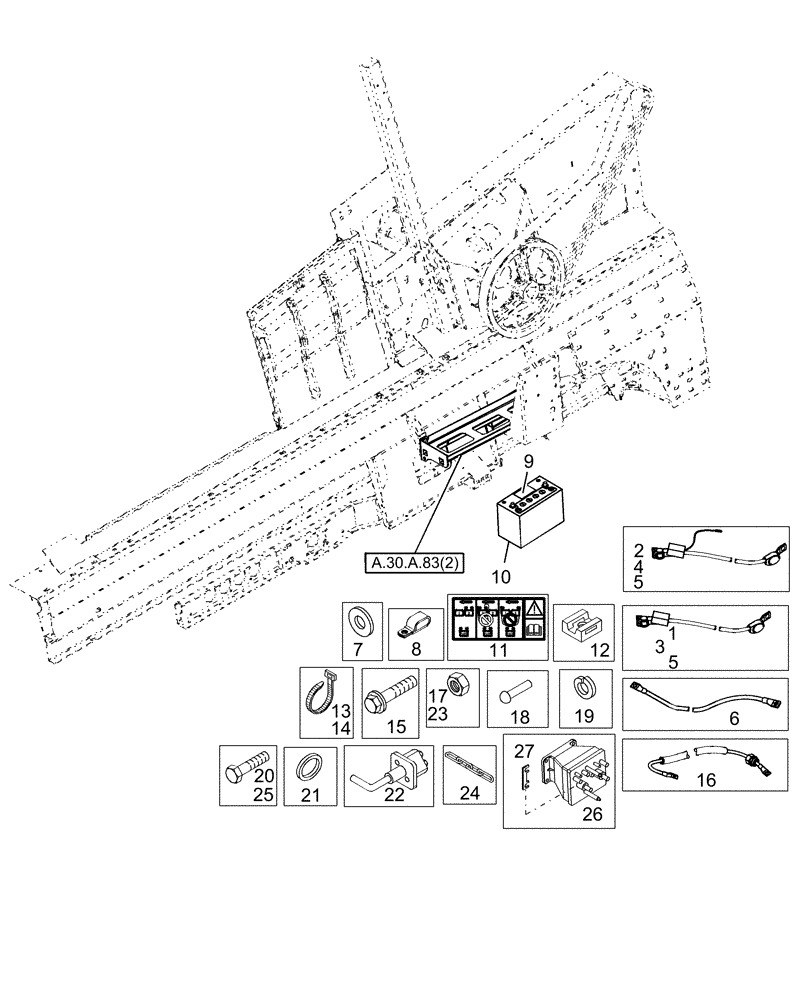

Запчасти Case IH AFX8010 (A.30.A.83[1]) - BATTERY SYSTEM A - Distribution Systems

1

87109621

CABLE

Positive, Rear - 750 mm

1шт.

2

87109619

CABLE

Positive, Front to Starter, with 832 wire - 2500 mm

1шт.

3

87109616

NEG BATTERY CABLE

Negative, Front - 1300 mm

1шт.

4

87109620

GROUND CABLE,Battery, 2250mm L

Negative, Rear, with 833 wire - 2250 mm

1шт.

For NA Only

1шт.

5

87109617

GAUGE

Negative - 350 mm - Without Ground Cable

1шт.

5

87281631

NEG BATTERY CABLE

Rear - With Ground Cable

1шт.

For EU Only

1шт.

6

87109618

GROUND CABLE

Black, Disconnect Switch to Chassis - 2500 mm

1шт.

For EU Only

1шт.

7

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

2шт.

For EU Only

1шт.

8

87000220

HOSE CLAMP

1шт.

9

86993121

LABEL

Battery

2шт.

10

BMF31GW

WET BATTERY

NA - ( 86993119 )

2шт.

10

CBMF31G

BATTERY, DRY

Canada

2шт.

11

86640426

DECAL

Safety

1шт.

12

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Base, Wire Tie

3шт.

13

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP

10шт.

14

86566989

CABLE TIE,208mm L

CABLE STRAP

6шт.

15

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

1шт.

16

84435752

POS BATTERY CABLE,5200mm L

1шт.

17

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

18

445394

RIVET,Pop, 3/16" x 1/2" OAL

3шт.

19

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

20

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

21

87026295

LOCK WASHER,M20 x 24.6mm OD x 2.8mm Thk

Key

1шт.

For EU Only

1шт.

22

84004375

BATTERY CUT-OUT

Key, Battery

1шт.

For EU Only

1шт.

23

9706690

NUT,M8 x 1.25, Cl 8

2шт.

For EU Only

1шт.

24

539289

CHAIN

1шт.

For EU Only

1шт.

25

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

2шт.

For EU Only

1шт.

26

389120

RELAY

Reverse, 12-24 Volt Swap - Includes Ref. 28

1шт.

27

420580

FUSED LINK

Fuse - 80 Amp

2шт.
